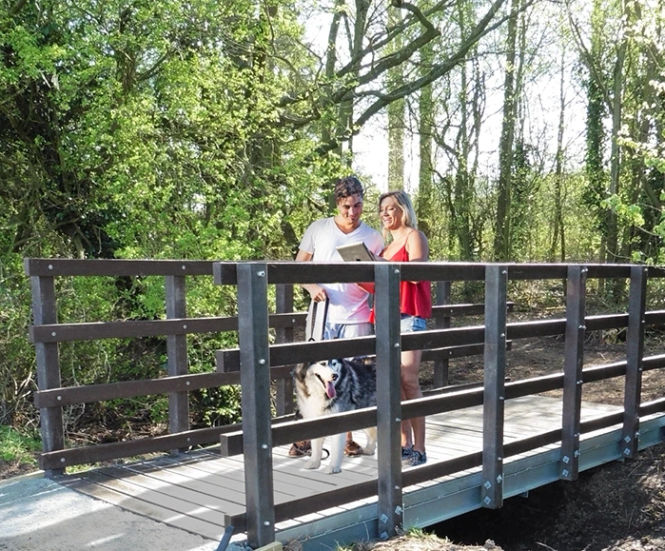

Recycled plastic kit form bridges
Re-Life recycled plastic combined with steel structural beams produce a highly durable, straightforward bridge solution. Bridges can be specified with recycled plastic deck boards, parapets and hand rails. This brings a double benefit of making use of an otherwise waste product and provision of a highly durable, maintenance-free bridge with a
Re-Life recycled plastic combined with steel structural beams produce a highly durable, straightforward bridge solution.
Bridges can be specified with recycled plastic deck boards, parapets and hand rails. This brings a double benefit of making use of an otherwise waste product and provision of a highly durable, maintenance-free bridge with a naturally slip-resistant surface.
Key Features
Crowd loading of 5.0kN per square metre.
Designed in strict accordance with the design manual for roads and bridges (DMRB) which is in general accordance with BS 5400 part 2.
Supplied in kit form and simply bolted together for quick installation.
Installation service available across the UK.
Up to 12m span
Regular bridge widths
800mm
1200mm
1800mm
2400mm
(Other widths available to order)
Regular bridge lengths
3.0 Mtr up to 16.0 Mtr, in 1 metre increments.
Just as would be expected if timber had been used, recycled plastic becomes covered with lichens over time giving a natural green look. Wiping the surface with a damp cloth quickly reveals the original surface, should this be desired at any time.
