Sportsmark demarcation studs are used to delineate parking bays, walkways, crossing points and property boundaries.

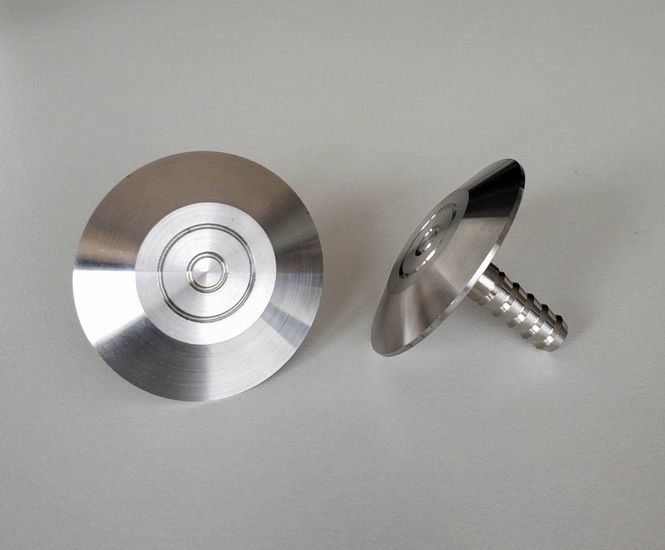

This particular stud has a 50mm-diameter domed head and an inner flat area (36mm diameter) with engraved rings to prevent any slip hazard.

Material

Stainless steel or brass.

Dimensions

  • Domed head: 50mm diameter
  • Height: 6mm
  • Flat area: 36mm diameter with 1.5mm anti-slip grooves
  • Shank: 30mm long; 9mm diameter

Typical applications

  • Walkways and crossing points
  • Car parking bays
  • Cafés and recreational areas
  • Shopping precincts
  • Property boundaries

Installation

Drill a hole of 10-12mm diameter to a depth of 35mm then clear the dust away from the interior of the hole and surface to be covered by the head of the marker. Apply a small quantity of 2-pack epoxy adhesive into the hole and the surface area immediately around the hole. Press the stud firmly into the hole until it is flush with the surface. Finally, remove any excess adhesive.
