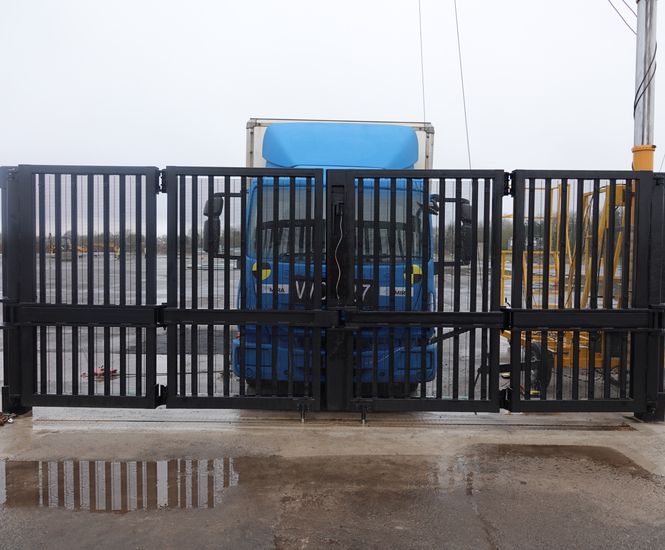

Terra is a double-leaf, high-security automatic or manual vehicle gate designed for hostile vehicle mitigation and forced entry resistance. Certified to IWA 14 (7.2t at 30mph) and LPS 1175 (A1/SR1, B3/SR2, C5/SR3), it suits perimeter protection where both vehicle and intruder threats are present.

  • High-security bi-folding gate for vehicle and intruder mitigation

  • Dual certification to IWA 14 and LPS 1175 standards

  • Minimal penetration in impact testing

  • Manual or automatic operation with programmable controls

  • Compatible with access control systems

  • Shallow foundation depths from 350mm for manual gates

  • Fully welded steel construction with security rated infill

  • Secured by Design and BRE Global accredited

Applications

  • Perimeter security for commercial and public buildings

  • Critical infrastructure protection

  • Government and military sites

  • High security fence lines

  • Vehicle access points requiring hostile vehicle mitigation

  • Sites at risk from vehicle borne improvised explosive devices (VBIEDs)

Dimensions

Standard height 2400mm

Clear aperture up to 7000mm

IWA 14 tested width 6000mm, height 2400mm

Performance

IWA 14: 7.2t at 30mph (48kph) vehicle impact

LPS 1175: Security Ratings A1 (SR1), B3 (SR2), C5 (SR3)

Normal operating speed approximately 25 seconds

100% duty cycle

Materials

Made from fully welded steel sections with steel impact beam

Finish

Shotblasted, hot zinc sprayed (galvanised), primed, polyurethane paint topcoat

Options and variations

Manual or automatic operation

Accumulator for power failure operation

High-security cabinet

Anti-tamper alarms

Installation

Manual gate: shallow foundation depth 350mm

Automatic gate: foundation depth depends on actuator

Accreditations

IWA 14 certified

LPCB LPS 1175 certified (A1/SR1, B3/SR2, C5/SR3)

Secured by Design

BRE Global
