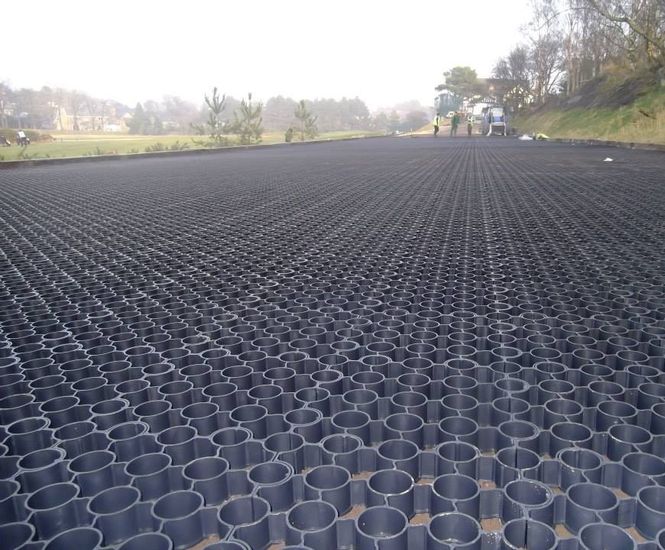

Hy-Pave Dura is an interlocking cellular tile used to create permeable, reinforced grassed or gravel areas. Made from 100% recycled HDPE, the tiles have a low carbon footprint and are suitable for a wide variety of applications.

Hy-Pave provides a solution to areas with displaced gravel or worn and rutted grass. It also provides source control of surface water run-off, and is an environmentally-friendly alternative to tarmac or concrete blocks.

The main benefit of Hy-Pave Dura is its permeability, which enables surface water to drain through the tiles, making them fully SuDS-compliant.

Infill options

Hy-Pave Dura can be filled with soil and seeded. Its cell structure and open base is designed to promote unrestricted grass root growth to create a naturally growing grass surface that is stabilised and reinforced to withstand frequent trafficking.

Alternatively, the tiles can be filled with gravel, as the cells effectively retain the loose fill to prevent loss or displacement, whilst also preventing rutting (making them ideal for wheelchair access).

Applications

  • Car and coach parks (grass or gravel)
  • Overspill/overflow grass car parks
  • Emergency service areas (including fire access routes)
  • HGV service access routes
  • Aircraft taxiways and helipads
  • Walkways and disabled access routes (Disability Discrimination Act 1995)
  • Golf buggy paths
  • Driveways and residential lawn parking
  • SuDS source control
  • Shed foundation/base

Key features

  • Load-bearing capacity of up to 160 tonnes/m²
  • Vehicle compression strength of 20 tonnes axle loading (meets DIN 1072 standard)
  • High open area to maximise visual appeal of finished surface
  • Choice of colours for marker pegs bays and signage
  • 3mm wall thickness for reliable performance
  • Designed to resist lateral movement, improve traction and allow expansion and contraction
  • Made in the UK from 100% recycled HDPE

Key benefits

  • Low carbon footprint
  • Chemically inert and non-toxic
  • Offers a naturally pleasing appearance
  • Easy to cut with hand or power saw
  • Pre-assembled 1m² panels allow for quick installation
  • Pavers filled with grass or gravel are SuDS source control compliant
  • Open cell structure provides environmentally-friendly high surface water infiltration
  • Promotes optimum grass growth, root protection and surface stabilisation

Material

Made from recycled or virgin, UV-stabilised polyethylene/polypropylene (HDPE standard), which is chemically inert, non-toxic and frost-resistant.

Dimensions

  • Tile size: 500 x 500 x 40mm
  • Wall thickness: 3mm
  • Coverage: 4 tiles per m2
  • Tile weight: 1.28kg
  • Pallet quantity: max 60m2 per pallet

Loading

  • Maximum load: 160 tonnes/m2
  • Maximum axle load: 20 tonnes

Working temperature

  • HDPE: -20 to 80°C
  • PP: -20 to 70°C
  • Fire rating: HB tested to BS EN 11925-2 2010
