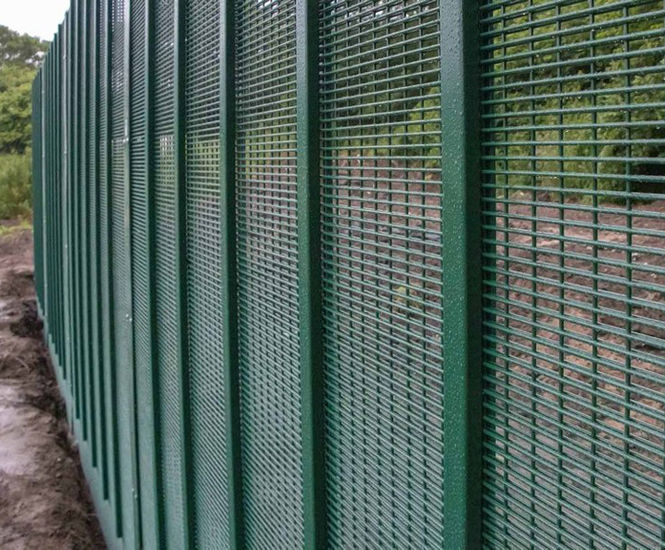

Securus AC is a high security fencing system made with 358 anti climb double layer mesh fencing with a minimum 2 person install.

Securus AC is tested and certified to LPS 1175 Issue 8. The system holds a B3 (SR2) security fencing classification and is designed to delay the latest threats in physical attacks on perimeters.

Offsite manufacturing makes Securus AC faster to install than Securus AC SR2. A reduced number of visible external fixings means all the fence cassettes can be manufactured off-site at CLD's head offices. CLD has also developed a new lifting system that allows quick release of the security fencing cassettes without the need to work from height.

The cassettes weigh just over 165kg (for 2.4m heights) and 203.05kg (for 3.0m heights), which also helps to make the installation process quicker and safer.

For sites where the use of mechanical equipment is not suitable, the Securus AC can also be delivered for assembly on-site, but with installation times still faster due to 46% fewer fixings.

Features

  • High-security fencing system

  • 358 anti-climb double-layer mesh fencing to BS 1722 Part 14: 2017

  • Tested and certified to LPS 1175 Issue 8 B3 (SR2)

  • Secured by Design certified

  • Minimum of 3 minutes delay against attack

  • Only 11 visible external fixings

  • No external fixings to intermittent clamp system

  • Off-site manufactured fence cassettes for reduced installation times compared to Securus SR2 AC

  • Additional security toppings available, including barbed wire, razor coil and non-hostile systems

Dimensions

Heights
2.4m to 5.0m

Mesh Size
76.2 x 12.5mm

Wire Diameter
4mm (horizontals and verticals)

Top Edge Projection
Nil – wire is flush on all edges

Posts
80 x 60mm special flanged section (patent applied for)

Corner Posts
80 x 80mm standard RHS section

Fence Cassette Weight 2.4m
165.65 kg

Fence Cassette Weight 3.0m
203.05 kg

Post Centres
2535mm

Finish

Our welded steel wire mesh fencing panels are galvanised and polyester powder-coated after stringent cleaning and treatment to give a well-adhered coating of 60 microns.

Full range of RAL and BS colours available, including metallic and marine grade finish.

Applications

  • Wastewater sites

  • Airports

  • Police and military Units

  • Data centres

  • High-security sites

Sloping ground

  • Certified for Level

  • Certified for Gradient 0 to 1 in 6

  • Certified for Gradient 1 in 6 to 1 in 3

Finish

Welded steel wire mesh fencing panels are galvanised and polyester powder-coated after cleaning and treatment to give a well-adhered coating of 60 microns.

Full range of RAL and BS colours available, including metallic and marine grade finish.

Dimensions

  • Height: 2.4 and 3.0m

  • Mesh size: 76.2 x 12.5mm

  • Wire diameter: 4mm (horizontals and verticals)

  • Top edge protection: nil (wire is flush on all edges)

  • Posts: 80 x 60mm special flanged section (patent applied for)

  • Corner posts: 80 x 80mm standard RHS section

  • Fence cassette weight (2.4m): 165.65kg

  • Fence cassette weight (3.0m): 203.05kg

  • Post centres: 2534mm
