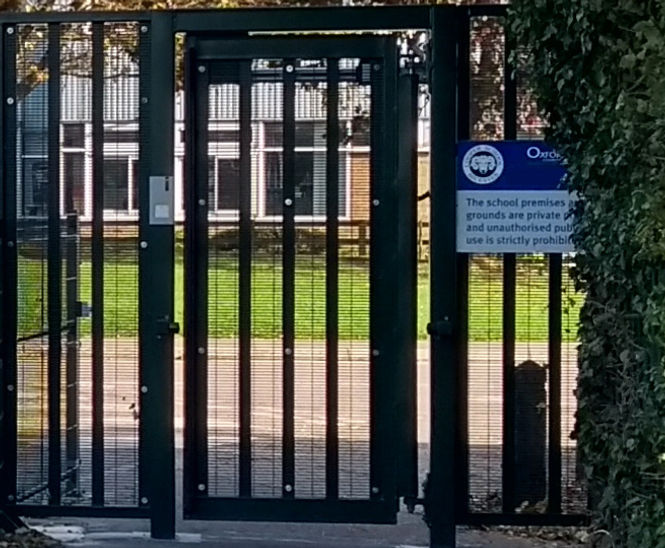

Qwicket is an automatic hinged/swing gate which provides safe access for pedestrians.

The motorised Qwicket gate can be operated by card reader, push-button, etc. It will open 90°, close and rebolt within a standard 15-second operating cycle.

Ideal for secure sites, where personnel access needs to be restricted or controlled.

Available in a wide range of styles for contemporary and traditional locations. Can  be custom-designed to specific requirements.

Key features

  • Automatic Hinged/Swing Pedestrian Gate

  • Single Leaf Maximum width: 750mm or 1000mm

  • Standard height: 2400mm

  • Standard internal height: 2050mm

  • Bespoke available

  • On receipt of a signal from a push-button, card reader etc, the Qwicket gateleaf unbolts and opens automatically by 90°, and then closes, rebolts and switches off in a standard 15-second* operating cycle

  • Construction: The gate leaf is a fully welded construction of rectangular hollow section, low carbon steel to BS4848 Pt.2.

  • Various security infills available including bar, security weldmesh, sheet, and bespoke such as wood and ornate.

  • 100 % Operating duty cycle – designed for continuous & frequent use.

  • Typical operating speeds dependent on automation type and configuration.

  • Hinged Gates Safety control systems: Safety photocells and safety edges are available.

  • Accessories: Signage, audible alarms and flashing beacons.

  • Hinged Gates Access controls: A wide range of access control systems are available.This is subject to a risk assessment to ensure the automatic equipment complies to BS EN 12453
