Type Vertical racks
Material Steel
Fixing Surface / baseplate fixed
Number of bikes 4-10
Dimensions (l x d x h) See below

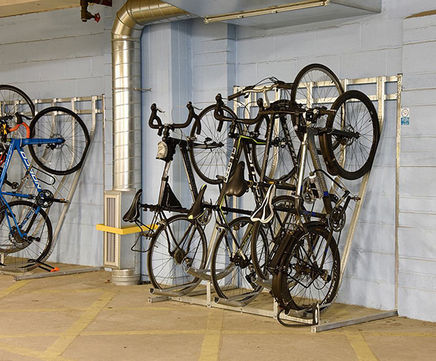

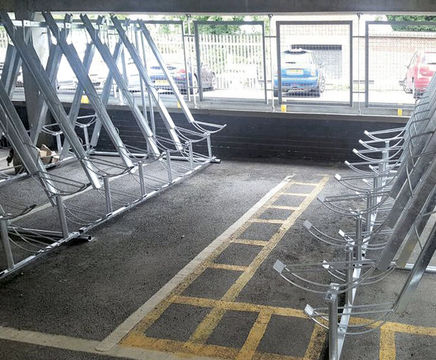

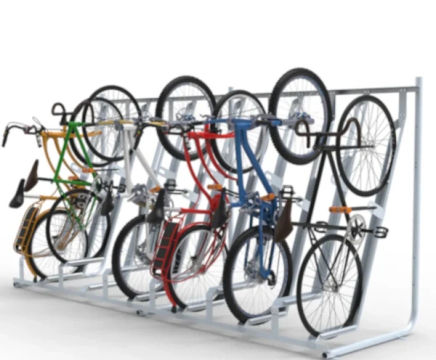

Semi-vertical cycle racks provide space-saving, secure storage in high/low positions at a 45° angle. Secure locking loops allow users to fix both the bike wheel and frame.

Features

  • Mild steel frame
  • Hot-dip galvanised to BS EN ISO1461:9001 or powder-coated in any RAL colour to BS EN 13438 and BS EN 15773 standards
  • High-low positions - space-saving
  • Surface-mounted and easy to install
  • Locking loops for added bike security
  • BREEAM compliant
  • Standard fixings supplied for assembly

Options

  • Powder coating in any standard RAL colour
  • Security fixings available for increased security

Specifications

4-bike
1215 (l) x 1360 (d) x 1900mm (h); 95kg

5-bike
1520 (l) x 1360 (d) x 1900mm (h); 107kg

6-bike
1825 (l) x 1360 (d) x 1900mm (h); 119kg

7-bike
2130 (l) x 1360 (d) x 1900mm (h); 131kg

8-bike
2435 (l) x 1360 (d) x 1900mm (h); 143kg

9-bike
2740 (l) x 1360 (d) x 1900mm (h); 155kg

10-bike
3045 (l) x 1360 (d) x 1900mm (h); 167kg

2400mm height required for loading
350mm centres (min - allow additional 300mm length for handlebars
Weights are approximate; final weights may vary slightly depending on finish chosen


Semi-vertical cycle racks provide space-saving, secure storage in high/low positions at a 45° angle. Secure locking loops allow users to fix both the bike wheel and frame.

Features

  • Mild steel frame
  • Hot-dip galvanised to BS EN ISO1461:9001 or powder-coated in any RAL colour to BS EN 13438 and BS EN 15773 standards
  • High-low positions - space-saving
  • Surface-mounted and easy to install
  • Locking loops for added bike security
  • BREEAM compliant
  • Standard fixings supplied for assembly

Options

  • Powder coating in any standard RAL colour
  • Security fixings available for increased security

Specifications

4-bike
1215 (l) x 1360 (d) x 1900mm (h); 95kg

5-bike
1520 (l) x 1360 (d) x 1900mm (h); 107kg

6-bike
1825 (l) x 1360 (d) x 1900mm (h); 119kg

7-bike
2130 (l) x 1360 (d) x 1900mm (h); 131kg

8-bike
2435 (l) x 1360 (d) x 1900mm (h); 143kg

9-bike
2740 (l) x 1360 (d) x 1900mm (h); 155kg

10-bike
3045 (l) x 1360 (d) x 1900mm (h); 167kg

2400mm height required for loading
350mm centres (min - allow additional 300mm length for handlebars
Weights are approximate; final weights may vary slightly depending on finish chosen
