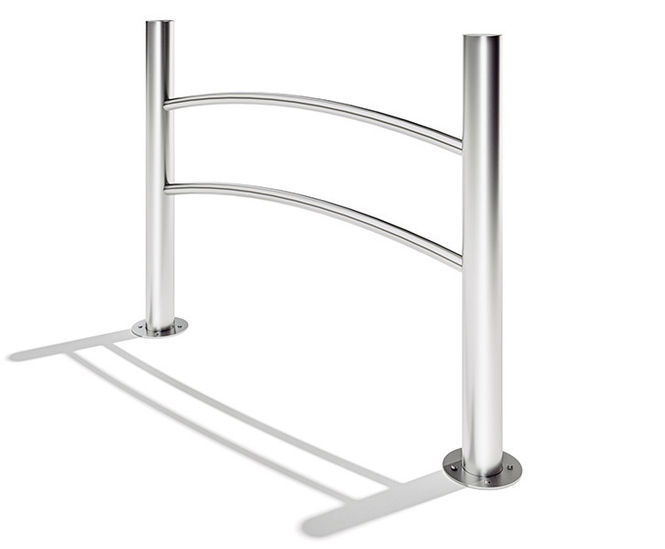

Navy pedestrian guardrail - by LAB23
The Navy pedestrian guardrail is made of 2 vertical pillars in tubular steel AISI 316 with 101,6mm dia connected to each other by 2 tubular stainless steel AISI 316 with 40mm diam, bent with a radius of 303,29mm and fixed with specific screws in stainless steel. The vertical elements have an interaxis of 1400mm and the bent ones have an interaxis
The Navy pedestrian guardrail is made of 2 vertical pillars in tubular steel AISI 316 with 101,6mm dia connected to each other by 2 tubular stainless steel AISI 316 with 40mm diam, bent with a radius of 303,29mm and fixed with specific screws in stainless steel. The vertical elements have an interaxis of 1400mm and the bent ones have an interaxis of 300mm.
Plates of 200mm dia and 5mm thickness, provided with 4 holes 10mm dia for the fixing to the ground through bolts (not provided), are welded to the pillars.
