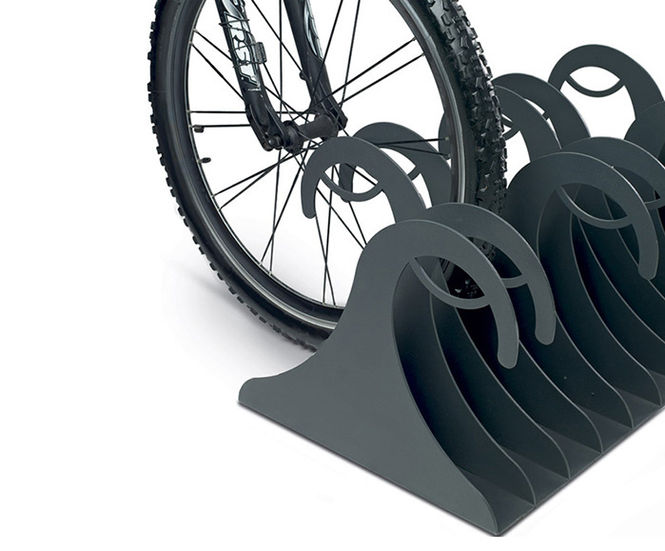

Wave cycle rack by LAB23
The Wave bike rack (10 bikes, alternate version) is made in 30/10-thick steel. The spacers, where the wheels of the bikes are placed, are laser-cut, wave-shaped and come with a hole to hook the bike. Wave can be fixed to the ground through specific bolts (not provided) and holes of 10mm diameter. For the realisation of this product, steel
The Wave bike rack (10 bikes, alternate version) is made in 30/10-thick steel. The spacers, where the wheels of the bikes are placed, are laser-cut, wave-shaped and come with a hole to hook the bike. Wave can be fixed to the ground through specific bolts (not provided) and holes of 10mm diameter.
For the realisation of this product, steel EN10111DD11 is used and later treated with a cycle of sandblasting, cataphoresis and powder coating. This process is meant to guarantee the protection of the painted products, in an environment of C4 corrosion class, as requested by the UNI regulations EN ISO 12944-2. The products are eventually polyester powder-coated with a choice of AkzoNobel RAL colours.
