Suitability Amenity areas
Car parks
Style Traditional
Installation Catenary suspended
Light source LED
Canopy / casing material Aluminium
Glazing / diffuser material Polycarbonate
Ingress protection IP66

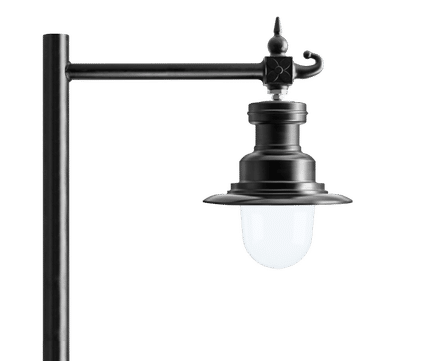

Birkdale Mini Heritage Lanterns offer the latest energy saving LED technology whilst maintaining the design style of a traditional fixture. The mini is one of three sizes available in the product family and provides a heritage solution suited to lower mounting heights and restricted spaces.

Key features

  • Save up to 75% on traditional HID installations
  • Lumen packages and optics to P2-P5 lighting classes (up to 6000 Lumens)
  • Modular optic designs offer multiple photometric solutions
  • ENEC approved
  • Photometry available on request

Key benefits

  • Fully programmable driver to operate with any central management system (CMS) (DALI2)
  • 2700-4000K colour temperature options
  • Polyester powder coated, and 1000 Hour Salt spray tested to survive the harshest environments
  • Customisable gear platform
  • Vandal resistance (Optic bowl rated to IK10)
  • Lightweight Aluminium body
  • UK designed and manufactured for prompt delivery
  • Lighting design service

Applications

  • Parks and open spaces
  • Residential roads
  • Town centres
  • Historic sites
  • Heritage campus grounds such as universities and historic sites
  • Narrow alleys and footpaths
  • Building entrances


Birkdale Mini Heritage Lanterns offer the latest energy saving LED technology whilst maintaining the design style of a traditional fixture. The mini is one of three sizes available in the product family and provides a heritage solution suited to lower mounting heights and restricted spaces.

Key features

  • Save up to 75% on traditional HID installations
  • Lumen packages and optics to P2-P5 lighting classes (up to 6000 Lumens)
  • Modular optic designs offer multiple photometric solutions
  • ENEC approved
  • Photometry available on request

Key benefits

  • Fully programmable driver to operate with any central management system (CMS) (DALI2)
  • 2700-4000K colour temperature options
  • Polyester powder coated, and 1000 Hour Salt spray tested to survive the harshest environments
  • Customisable gear platform
  • Vandal resistance (Optic bowl rated to IK10)
  • Lightweight Aluminium body
  • UK designed and manufactured for prompt delivery
  • Lighting design service

Applications

  • Parks and open spaces
  • Residential roads
  • Town centres
  • Historic sites
  • Heritage campus grounds such as universities and historic sites
  • Narrow alleys and footpaths
  • Building entrances
