IWA 14 Terra Jupiter shallow-depth static bollards from Frontier Pitts are high-security, fixed posts designed to stop a 7.2-tonne vehicle travelling at 50mph, with a shallow foundation depth of 200mm. Made for hostile vehicle mitigation in urban areas with limited excavation depth, these bollards are made from S355 structural steel and are available with decorative sleeves.

  • High-security static bollard for hostile vehicle mitigation with shallow 200mm foundation

  • Impact tested to IWA 14 standard, stopping 7.2t at 50mph

  • Suitable for sites with restricted foundation depth due to underground services

  • Quick installation with reduced site disruption

  • Uses 25% less concrete than standard static bollards

  • Stackable design for easy transport

  • Compatible with a range of decorative sleeves

Applications

  • City centres with limited excavation depth

  • Airports

  • Skyscraper perimeters

  • Areas with underground utilities or car parks

  • Public realm entrances

  • Crowded places requiring hostile vehicle mitigation

Dimensions

Height above ground: 1000mm

Diameter: 273mm

Foundation depth: 200mm

Performance

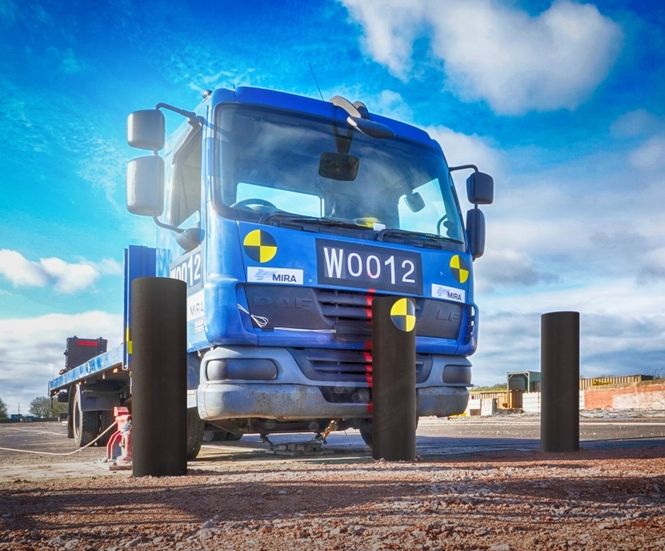

IWA 14 impact tested to stop 7.2t at 50mph (80kph)

IWA 14 Classification Code V/7200[N2A]/80/90:8.7

Materials

Made from S355 structural steel plate

Finish

Shotblasted, hot zinc sprayed (galvanised), primed, polyurethane paint

Optional 316 stainless steel satin or bead blasted sleeves with dome or mitre tops

Installation

Shallow foundation type B, 200mm embedment

Installed at 1200mm between upright faces to meet IWA 14-2 guidelines

Accreditations

Secured by Design

BRE Global Civil Engineering
