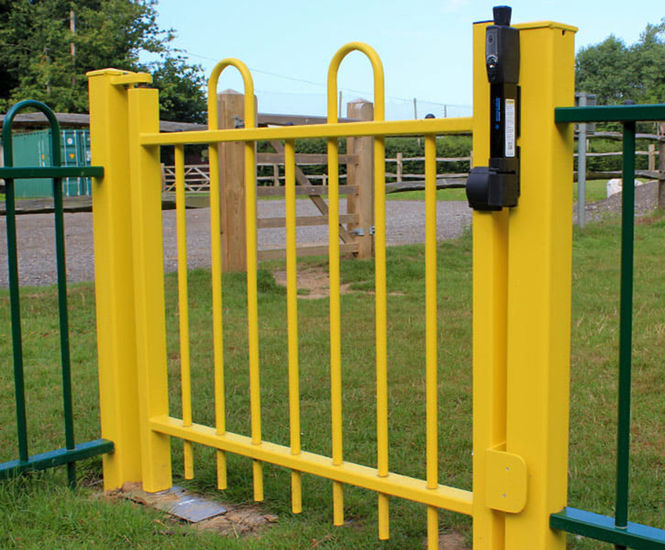

Anti trap bow top playground gate
Anti trap bow top gates conform to all current playground safety guidelines to create safe access points to play areas. Optional self closing variant, which features an in ground operator with adjustable closing rate and soft close feature. This ensures the gate returns to the closed position after use, preventing slamming and trapped fingers
Anti trap bow top gates conform to all current playground safety guidelines to create safe access points to play areas.
Optional self closing variant, which features an in ground operator with adjustable closing rate and soft close feature. This ensures the gate returns to the closed position after use, preventing slamming and trapped fingers.
Self close mechanism has been tested to 1 million operations.
Designed to match Jacksons' Anti Trap Bow Top Fencing.
Key features
Inherently safe
Quiet operation
Welded pale through rail construction
Proven, durable self closing mechanism tested to 1 million operations
RoSPA approved
Conforms to BS EN 1176 play fence standards
25 year service life guarantee
Slide latch
Finishes
Hot dip galvanised to BS EN ISO1461 as standard
Hot dip galvanised and powder coated to BS EN 13438
Marine coat for installations within 500m of salt water or estuary
Standard colours
Black RAL 9005
Green RAL 6005
Other colours are available on request
Post options
Over length set in concrete as standard Base plated to bolt down onto concrete
Anti Trap Bow Top Gate Specification
Heights: to match fencing
Rails: 50 x 25 x 2mm wall thickness
Rectangular hollow section hanging stiles: 60 x 40 x 2mm wall thickness
