SFA6 Sewers for Adoption precast concrete headwall
The SFA6 is a Sewers for Adoption precast concrete headwall suitable for internal pipe diameters of up to 300mm. It is designed for applications where a smaller than normal footprint is required. The headwall is available in a choice of three backwall heights and three wing wall profiles. Toe depths up to 1000mm are available in 300 or 500mm
Click for full image

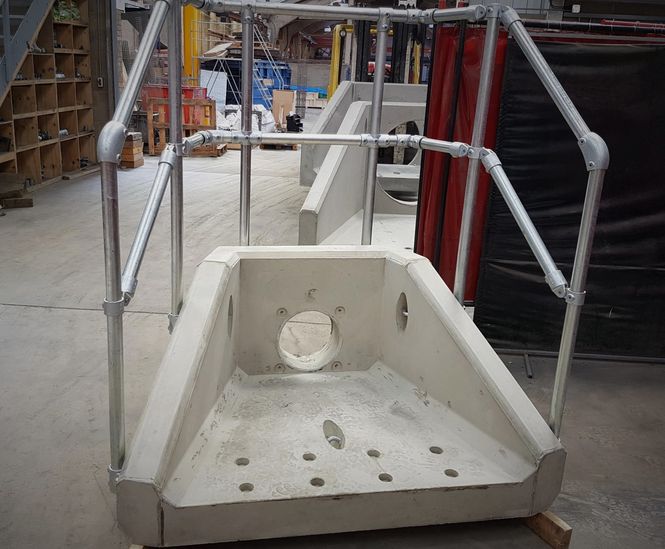

SFA6 precast concrete headwall
Product details
Products
SFA headwalls
Material
Concrete
Accessories
Extended toes
Fitted flap valves
Fitted railings
Gratings
SFA safety grilles
For use on
Culverts
River outfalls
Sea outfalls
Sewers
Swales
Conforms to
Sewers for Adoption (SFA)
Backwall height (mm)
800 - 2350
Max. pipe diameter (mm)
300mm
The SFA6 is a Sewers for Adoption precast concrete headwall suitable for internal pipe diameters of up to 300mm. It is designed for applications where a smaller than normal footprint is required. The headwall is available in a choice of three backwall heights and three wing wall profiles. Toe depths up to 1000mm are available in 300 or 500mm thicknesses. Factory-fitted accessories include gratings, flap valves, Kee Klamp handrails, penstocks and flow control devices.
Key features
Small footprint
SFA-compliant
Internal pipe diameters up to 300mm
Toe depths up to 1000mm; toe thicknesses of 300 or 500mm
