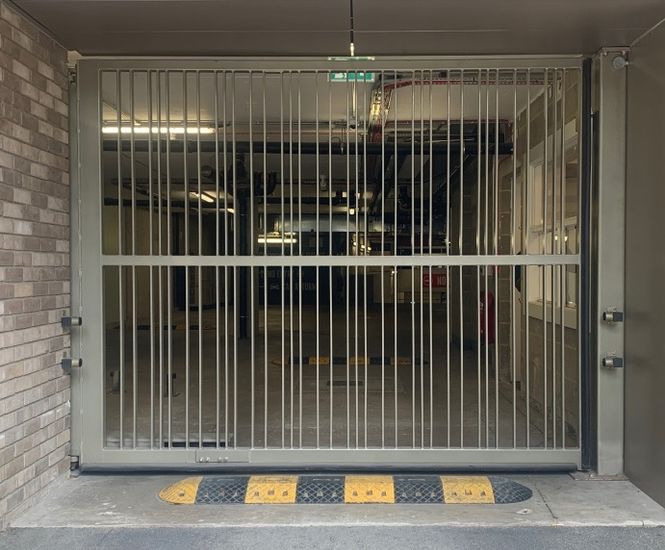

Platinum hinged single- or double-leaf security-rated gates by Frontier Pitts are designed for locations with limited space for sliding gates. Made from fully-welded low-carbon steel, they withstand forced entry to LPS 1175 Security Ratings SR1, SR2 and SR3, are Secured by Design, and are available in a range of sizes and infill options.

  • Security gate range for high-risk sites with limited runback space

  • Tested to LPS 1175 Security Ratings SR1 (1 min), SR2 (3 min), and SR3 (5 min)

  • Made from rectangular hollow section, low carbon steel

  • Choice of vertical bar and mesh infill options

  • 100% duty cycle for continuous operation

  • Compatible with a wide range of access control and safety systems

  • Corrosion protection system for up to 20 years

  • Secured by Design and BRE Global accredited

Applications

  • Perimeter security for commercial and industrial sites

  • Critical infrastructure protection

  • Government and military facilities

  • Utilities and energy sites

  • Transport hubs

  • Sites with restricted space for sliding gates

Dimensions

Maximum width 5000mm

Standard height 2400mm

Maximum height 4000mm

Performance

LPS 1175 Security Rating SR1 (A1) for 1 minute

LPS 1175 Security Rating SR2 (B3) for 3 minutes

LPS 1175 Security Rating SR3 (C5) for 5 minutes

100% duty cycle

Materials

Low carbon steel, rectangular hollow section

Galvanised weld mesh and ERW bar infill

Colours

Any RAL colour

Finish

Shotblasted, hot zinc sprayed, primed, polyurethane paint

20-year corrosion protection for exterior, industrial inland sites

Acid dipped and hot galvanised option for smaller gates

Options and variations

Single or double leaf

Range of infill types

Custom sizes available

Accreditations

Secured by Design

BRE Global
