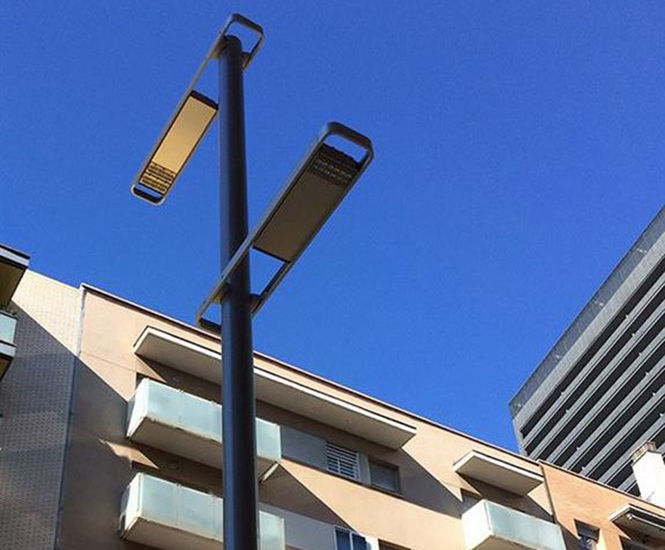

The Wide lighting column offers a variety of heights and configurations, making it suitable for diverse urban environments.

Versatile modules and optics provide precise light distribution at night and a discreet look during the day. With low energy consumption, high light output, and long-lasting LED modules, it has no glass diffuser for added durability.

The casing is designed for efficient heat dissipation, and a slidable tray allows easy inspection of the electronic components.

Features an IP66 rating for water and dust protection, IK08 impact resistance, and protection against voltage surges.

Available in two casing sizes to accommodate different power ratings, the Wide street light can be installed at heights from 4 to 9 meters and configured in single, double, or up to five-unit setups.

Constructed from anodised aluminium extrusion profiles, the lamp is mounted on a column made of galvanised or zinc-plated steel with a primer and polyurethane enamel finish.

Dimensions

Wide Simple

  • Height: Up to 10 meters

  • Weight: 162 kg

Wide Doble Alcada

  • Height: Up to 10 meters

  • Weight: 149 kg

Wide Doble

  • Height: Up to 10 meters

  • Weight: 159 kg

Wide Espiral

  • Height: Up to 10 meters

  • Weight: 184 kg

Luminare

  • Size: 111x32x23 cm

  • Weight: 12kg

Materials and finishes

  • Anodised aluminium profile in Matt Silver

  • Galvanized steel

  • Galvanized steel coated in RAL 9006
