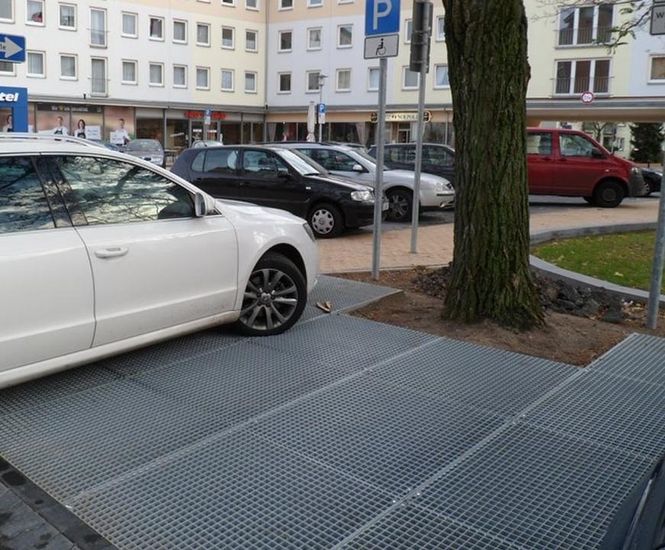

RB Light 15kN is a in ground root bridge system made for light vehicular traffic, supporting up to a 3-ton axle load. Designed for cost efficiency, it uses 1m x 1m sections and can be finished with heel-safe mesh or paved over for different surface requirements.

  • Light-duty root protection system for vehicles and pedestrians

  • Supports 15kN point load and 3-ton axle load

  • 85mm depth

  • Modular 1m x 1m sections

  • Surface finished with heel-safe mesh or paving

  • Various soil conditions using different length groundscrews

Applications

  • Short stretches of car-only access roads between trees

  • Car parking spaces

  • Pedestrianised areas requiring occasional vehicle access

Dimensions

Depth 85mm

Section size 1m x 1m

Performance

15kN point load

3-ton axle load

Finish

Heel-safe mesh or pave over
