Products Culvert headwalls
Material Concrete
Number of segments One piece
Two piece
Accessories Extended toes
Fitted railings
Gratings
Trash screens
For use on Culverts
River outfalls
Swales

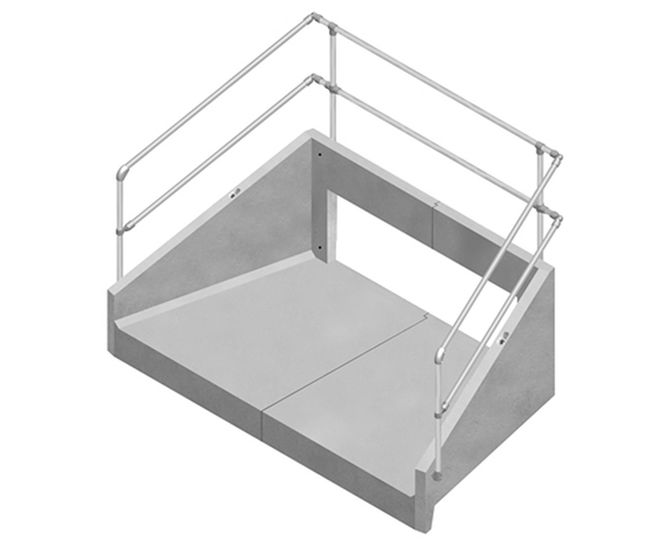

Althon culvert headwalls recess the inflow and outflow at the end of the pipe or culvert into the slope to improve entrance flow conditions, and to anchor the pipe and prevent disjointing due to excessive velocities.


Althon culvert headwalls recess the inflow and outflow at the end of the pipe or culvert into the slope to improve entrance flow conditions, and to anchor the pipe and prevent disjointing due to excessive velocities.





Enquire
