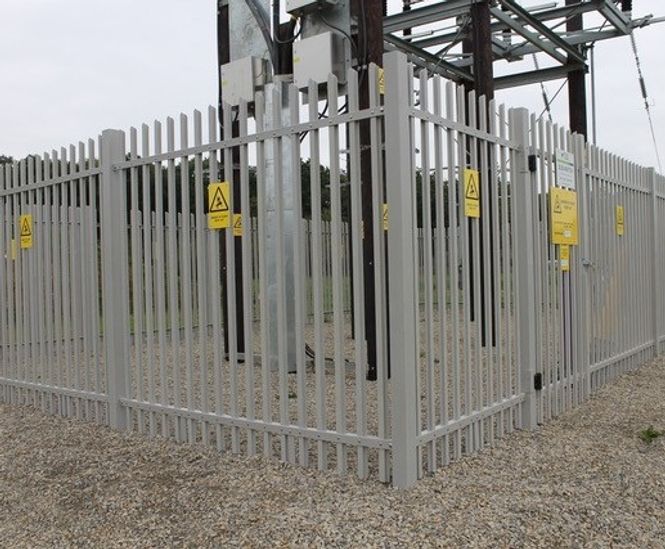

Lochrin POLYsade™ is a security fencing system made from glass fibre reinforced polyester for perimeter protection, using patented Combi™ design with vertical pales passing through horizontal rails and fixed in place by tamper-proof security fasteners.

  • Security fencing system with interlocking pales and horizontal rails
  • Non-corrosive and non-conductive, unaffected by water, salts, oils, acids or alkaline
  • Pales are fixed through rails, resisting leverage or removal
  • Panels pre-built to simplify and speed up installation
  • Compatible with electric fencing, PIDS, and CCTV
  • Panels supplied in kit form for easy transport and site handling
  • Pedestrian and vehicle gates available to SR3 specification

Applications

  • Utility sites
  • Railway perimeters
  • Industrial facilities
  • Critical infrastructure
  • Sites requiring non-conductive fencing
  • Coastal or chemically aggressive environments

Dimensions

Panel heights from 1.1m to 3.6m

Standard panel length 2.7m with 17 pales per panel

Panel weight as little as 40kg

Materials

Made from glass fibre reinforced polyester (GFRP)

Finish

Steel grey as standard

Colour options: white, black, holly green, blue

Options and variations

Pale profiles: two types

Pale top finishes: three types

Bottom options tailored for security requirement

Post types: dig-in and baseplated

Rails: 2, 3, or 4 per panel (all CNC machined)

Fishplate connectors: 2, 3, or 4 per post and rail

Intermediate supports: 2 for bottom rail

Performance

Resists corrosion and removal by leverage

Suited for sites where electric conductivity is a risk ('touch-safe')

Installation

Panels pre-built and supplied in kit form

Posts pre-slotted and capped (BOXpost™)

Quick and easy on-site assembly

Product accreditations

Complies with BS1722-12:2006
