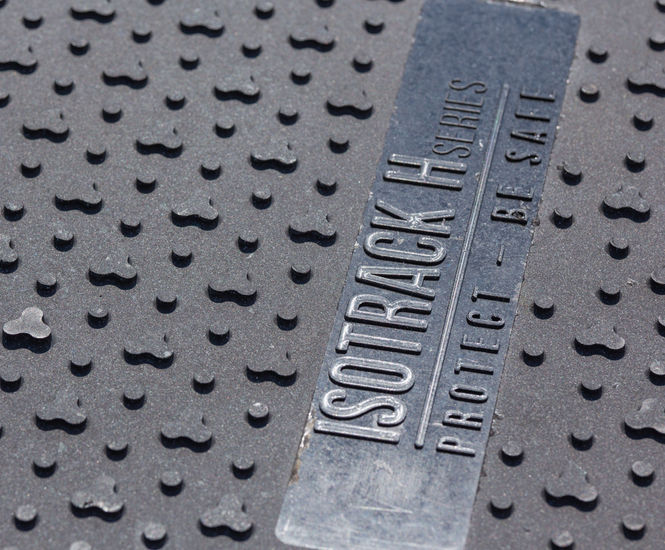

Isotrack H is a series of heavy-duty temporary access mats that provide safe work areas over soft ground conditions and hard surfaces.

IsoTrack panels are easy to install and used across a wide range of industries including civil engineering, landscaping, golf course and sports field maintenance, holiday home parks, heritage and archaeological sites, and a multitude of other applications. This enables more efficient and safer working conditions whilst at the same time promoting a more professional image to clients and customers.

Groundtrax keeps a stock of temporary trackway panels for purchase and immediate dispatch or collection. Delivery is by the company's own transport, nationwide pallet delivery companies, or clients can use their own transport.

Specification

  • Panel dimensions: 3000 x 2500 x 40mm (usable surface area: 7.5m²)
  • Weight per panel: 295kg
  • Load bearing capacity: 150t (dependent upon the underlying ground conditions)

Product benefits

  • Support vehicle and equipment weights up to 150 tonnes.
  • Easy and quick to unload using lifting equipment or forklifts.
  • Fast and easy to install using a choice of connection options.
  • Install roadways, working pads, parking and turning areas.
  • IsoTraction® surface design for superior traction.
  • Safe movement and access for vehicles, equipment and people.
  • Mats gently flex with ground contours – no ground preparation required.
  • Prevent severe rutting and damage – avoid ground reinstatement costs.
  • Prevent vehicles and equipment from getting bogged down – keep projects running and avoid delays.
  • One-piece compression-moulded high-performance recycled thermoplastic material resistant to chemicals and oil.
  • UV-protected.
  • Flexible but tough and durable mat for long life use.
  • Low theft risk compared to aluminium and steel mats.
  • 100% recyclable at end of life.

Key information and features

  • One mat but two different traction surfaces – for vehicle and pedestrian use.
  • IsoTraction® surface designed and tested to provide the best vehicle tyre traction surface on the market.
  • Unique elongated connector hole design to compensate linear expansion / shrinkage of mats during extreme temperature changes.
  • Customer logo option.

Applications – main sectors

  • Construction and civil engineering
  • Utilities
  • Oil and gas
  • Mining
  • Transmission
  • Drilling contractors
  • Events
  • Any projects requiring safe temporary access for heavy vehicles and equipment
