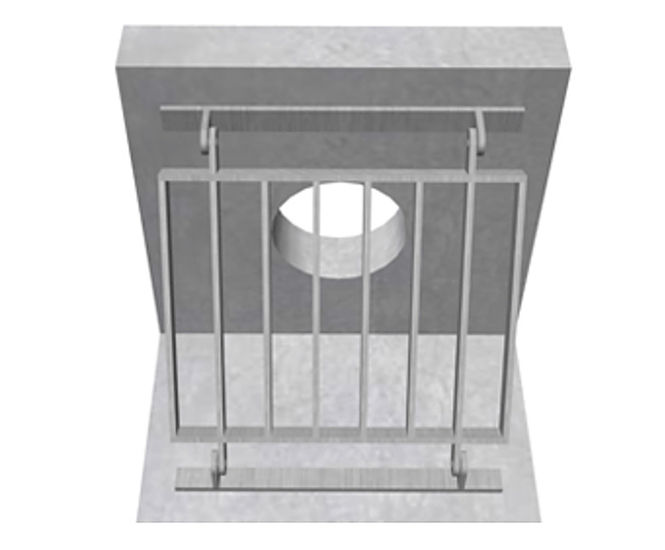

Trash screens made from galvanised mild steel or stainless steel, to fit pipework up to 1500mm. Screens have a 60-degree rake, with 40 x 10mm or 50 x 12mm flats, spaced at 75mm or 100mm centres. Designed for use with precast, in-situ, or brick headwalls and outfalls.

  • Sloped trash screens for pipework up to 1500mm with a 60-degree angle

  • Made from galvanised mild steel or stainless steel

  • Flat bar construction with 40 x 10mm and 50 x 12mm sections

  • Bar spacing at 75mm or 100mm centres

  • Fits precast, in-situ, or brick headwalls and outfalls

  • Reduces entry of litter, debris, and natural material into pipework

  • Helps prevent unauthorised access and blockages

Applications

  • Surface water drainage systems

  • Culvert and outfall protection

  • Flood prevention schemes

  • Infrastructure and civil engineering projects

  • Watercourse and river management

  • Public and private drainage installations

Dimensions

For pipework up to 1500mm internal diameter

Materials

  • Galvanised mild steel

  • Stainless steel

Options and variations

  • Available for pipework sizes from 150mm to 1500mm internal diameter

  • Custom sizes and specifications on request
