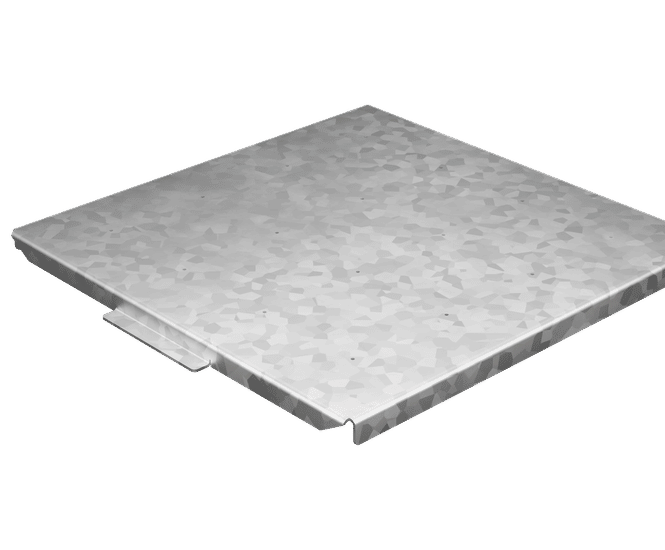

The Structa floor structure panel is a high-performance, steel surface support tray system that offers a sturdy and permeable platform for laying surfaces and elevating planters. It eliminates the need for solid construction like concrete, making it suitable for roof terraces, balconies, and other outdoor areas.

The panels are manufactured from pre-galvanised steel or corten to address wind uplift concerns.

The 28mm option is to be installed on the 30mm aluminium joist.

Benefits

  • BRooft(t4) rated - support structures made from fire- and corrosion-resistant steel

  • Modular and fully customisable - can be configured to meet requirements

  • Raaft terrace system is engineered for optimum drainage

  • No fixtures required - each component comes together seamlessly for quick installation

  • Range of adjustable heights from 5-365mm

  • Strong but lightweight

  • Made from a corrosion-resistant steel

  • Robust structure - strong enough for terraces

  • Material: 100% recyclable galvanised steel

Range

To fit 50mm aluminium joist
Product code 321011: 600 (l) x 540* (w) x 48mm (d)
Product code 321015: 500 (l) x 440* (w) x 48mm (d)

To fit 30mm aluminium joist
Product code 321023: 600 (l) x 540* (w) x 28mm (d)
Product code 321024: 500 (l) x 440** (w) x 28mm (d)

* To create 600mm centres when used with Raaft aluminium joists
** To create 500mm centres when used with Raaft aluminium joists
