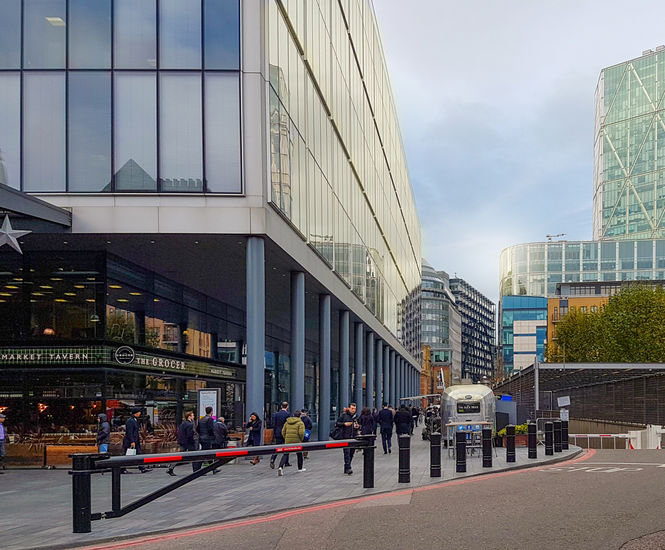

Terra Ultimate 180° swing barrier is a manually-operated, bi-directional hostile vehicle mitigation (HVM) barrier, impact-tested to IWA 14-1 standards to stop a 7.2 tonne vehicle at 50mph. Designed for securing access points where occasional entry is needed, it suits locations with limited or no power supply and can secure entrances up to 10m wide with a shallow embedment depth.

  • Manual swing barrier for vehicle impact protection at access points

  • Impact tested to IWA 14-1, stopping a 7.2t vehicle at 50mph

  • Bi-directional operation with right or left hand hinging

  • Shallow embedment depth of 350mm for easier installation

  • Secured by anti-tamper locking mechanism resistant to hand and battery tools

  • Maximum width up to 10,000mm

  • Sleek design suitable for public realm protection

Applications

  • Perimeter security for public spaces

  • Securing remote or unmanned access points

  • Out-of-hours vehicle access control

  • Locations with restricted or no power supply

  • Temporary or permanent event security

Dimensions

Maximum width 10,000mm

Tested width 6,000mm

Embedment depth 350mm

Foundation depth 500mm

Performance

Impact tested to IWA 14-1: V/7200[N2A]/80/90:4.7

Stops 7.2t vehicle at 50mph (80kph)

Materials

Made from fully welded steel sections with a steel impact boom

Finish

Shotblasted, hot zinc sprayed (galvanised), primed and finished with polyurethane paint

Installation

Shallow embedment of 350mm, foundation type B

Manual operation, easy to install and operate

Accreditations

Tested to IWA 14-1 specification
