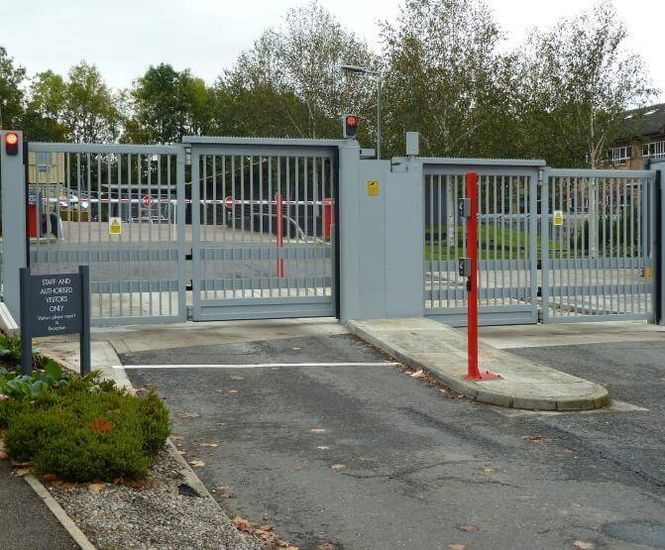

Terror Stopper PAS 68 Bi-Folding Gates are high-security, hydraulically driven steel gates designed for hostile vehicle mitigation, tested to stop 7.5-tonne vehicles at 40mph and 50mph with minimal penetration and shallow foundations.

  • High-security bi-folding gate for vehicle impact resistance

  • Tested to PAS 68:2010 standards at 7.5T, 40mph and 50mph, with penetration under 1m

  • Successfully impacted PAS 68, stopping a 7.5-tonne vehicle with zero penetration and remaining fully functional after impact

  • Hydraulic operation

  • Shallow foundation depth of 380mm

  • Supplied as a fully assembled, factory-tested unit

  • Steel frame, galvanised and powder coated to standard RAL colours

  • Integrated safety features including CAT3 safety edges and light curtain

Applications

  • Critical infrastructure protection

  • Government and military sites

  • Airports and transport hubs

  • Commercial and industrial premises

  • Event security perimeters

  • Urban hostile vehicle mitigation

Dimensions

  • Opening: 4.2m

  • Height: 2.8 - 5m

  • Minimum foundation depth: 380mm

Performance

  • PAS68:2010 V/7500(N2)/64/90:0.8/0.0 (7.5T at 40mph, 0.8m penetration)

  • PAS68:2010 V/7500(N3)/80/90:0.7/0.0 (7.5T at 50mph, 0.7m penetration)

  • Typical operating time 8–9 seconds

Materials

Made from steel

Colours

Standard RAL colours

Finish

Galvanised and polyester powder coated to BS1722 p16

Installation

  • Supplied as a complete assembled unit

  • Shallow foundation depth of 380mm

Maintenance

Servicing recommended twice per year

Accreditations

PAS 68:2010 certified
