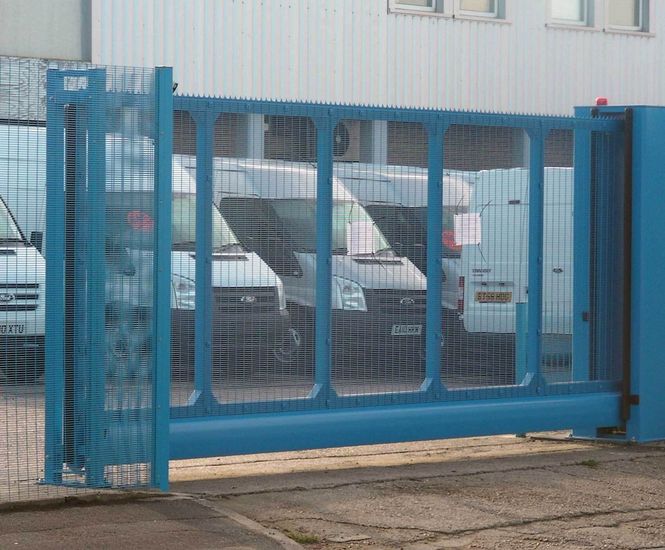

Terror Stopper PAS 68 Cantilever Sliding Gates are high-security steel gates designed to stop 7.5-tonne vehicle attacks, tested to PAS 68 standards at 40mph and 50mph. Gates blend into perimeter lines, support up to 8m openings, and use electric or hydraulic drives with manual override. Infills include vertical bar, welded mesh, or woven mesh to match perimeter fencing.

  • High-security cantilever sliding gate for hostile vehicle mitigation

  • PAS 68 crash tested with 7.5T vehicles at 40mph and 50mph

  • Up to 8m clear opening with only 1.6m dynamic penetration at 50mph

  • Electric or hydraulic drive with manual override for power failure

  • Compliant with EN 12453:2001 safety standards

  • Factory-assembled and tested for straightforward installation

  • Choice of infill types to match perimeter fencing

  • Quiet, smooth operation with advanced control panel and safety features

Applications

  • Security perimeters

  • Utilities infrastructure

  • Emergency service sites

  • Transport hubs

  • Critical infrastructure

  • Commercial and industrial sites

Dimensions

  • Height: 1800 - 3000mm

  • Width: up to 8m

  • Foundation depth 380mm

Performance

  • PAS68:2010 V/7500[N2]/64/90:5.6/10.1 (7.5T at 40mph)

  • PAS68:2010 V/7500[N3]/80/90:1.6/5.4 (7.5T at 50mph)

  • Operating speed 250mm/sec (8m opening in 35 seconds)

Materials

Made from steel sections

Installation

Supplied as a complete assembled and tested unit

Accreditations

  • PAS 68 crash tested

  • Compliant with EN 12453:2001

Maintenance

Servicing recommended twice per year
