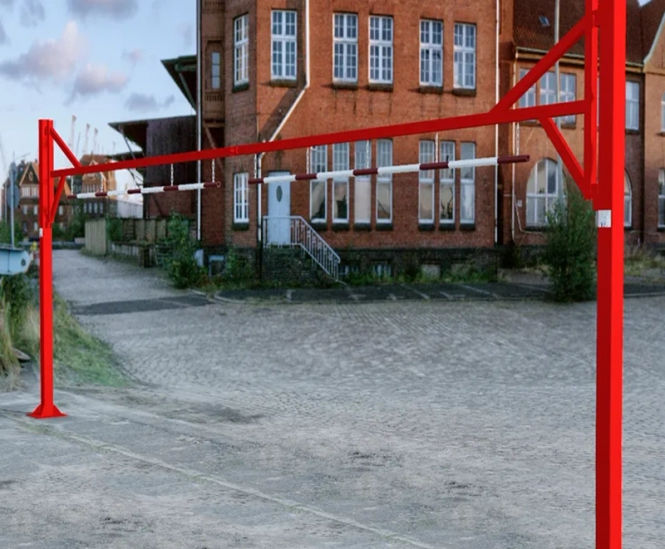

AUTOPA's double swing height restrictor has a standard clearance of 2.05m, limiting access to high-sided vehicles. Suitable for commercial sites such as retail parks, it spans two carriageways, preventing vehicles from circumventing the access control measures in place.

Booms can be opened when required to allow full access, and locked in the open position if needed using additional catch posts.

Features

  • Galvanised steel construction
  • Finish coated red with white class 2 reflective tape
  • Swing boom lockable by padlock (extra)
  • Standard widths 6-12m.

Specifications

  • Galvanised steel main post construction 120 x 120 x 3mm; base 400 x 400 x 10mm
  • Catch post 90 x 50 x 3mm; base 340 x 254 x 10mm
  • 600mm below ground (ragged version)
  • 2050mm ±70mm standard clearance to knocking bar
  • Four 16mm bolts required for each leg (flanged version)
  • Available ragged for casting in or flanged for bolting down

Options

  • Additional catch post available for occasional access by high-sided vehicles (required if swing boom is to be locked in open position)
  • Available ragged for casting in or flanged for bolting down.
  • Knocking bars
  • Road warning signs
  • Swing gates (cannot be retrofitted to an existing height restrictor
