| Frame |
Mild steel |
| Roof |
Toughened glass |
| Side / back |
Toughened glass |
| Fixing |
Surface / baseplate fixed |
| Dimensions (w x d x h) |
W: 4280mm x D: 1223mm x H: 2383mm |

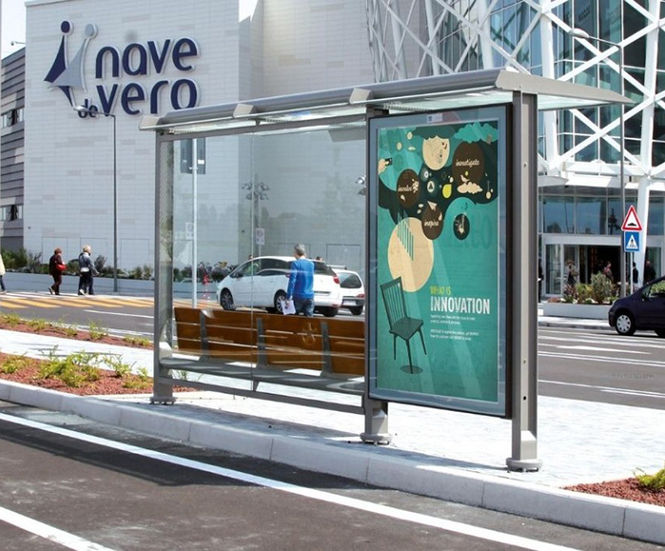

The Pensilis 1223 Shelter is built up of three hot dip galvanised steel vertical beams with a steel base plate which is to be fixed to the female anchor dug into concrete and then brought together with a monolithic roof formed by a tubular steel beam with supports complete with shatter-resistant glass roof panes with polished edging cut.
The outdoor illuminated advertising display is made up of a galvanised steel support frame, extruded aluminium profile hinged case, assembled with a range of accessories.
The electrical system consists of three lamps.
The poster is held by a special stainless steel bar with a spring-action catch. All metal parts are polyester powder coated.
The Pensilis 1223 Shelter design is supplied with the Sedis Seat which is made from 40mm thick timber slats, treated with a water varnish.
The seat is fixed to the lower rail of the shelter with 6mm thick laser shaped fins.
