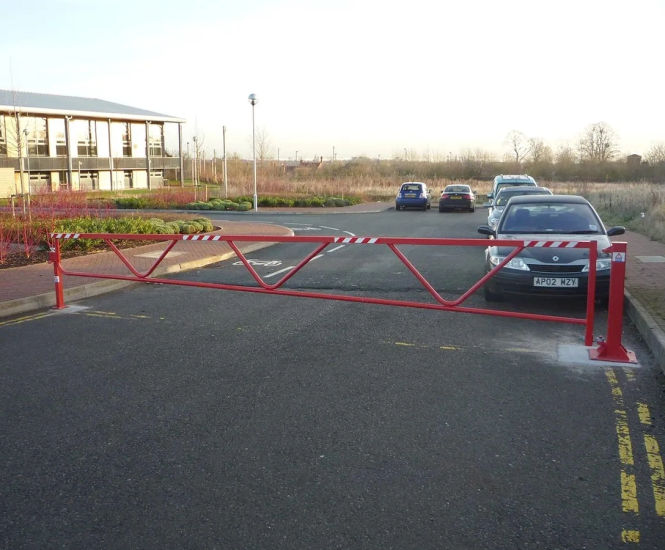

Designed for securing commercial and industrial site entrances where only occasional access control is required.

Robust and reliable gate with several safety features incorporated into the design as standard. These include a self-latching catch post, short leading edge beam and low bottom edge, which combine to reduce the risk of the gate swinging open unexpectedly, and decrease the risk of injury if it does. The gate can be locked in both the closed and open positions (a second catch post is required) using a padlock.

Features

  • Galvanised mild steel, painted red as standard

  • Lockable in the open and closed positions (two catch posts required)

  • Single gate up to 7m

  • Adjustable hinges and catch post

  • Locked in place with user's own padlock (available separately)

  • Available ragged for casting in or flanged for bolting down

Specifications

  • Main body: 120 x 120mm square tube

  • Main gate arm: 60 x 60mm square tube

  • Catch post body: 90 x 50mm tube

  • Boom length: 3000-7000mm

  • Ragged gate: 600mm below ground

  • Ragged catch post: 400mm below ground

Options

  • Other colour-coated options; specify when ordering

  • Ragged or flanged

  • Full site survey and installation service available
