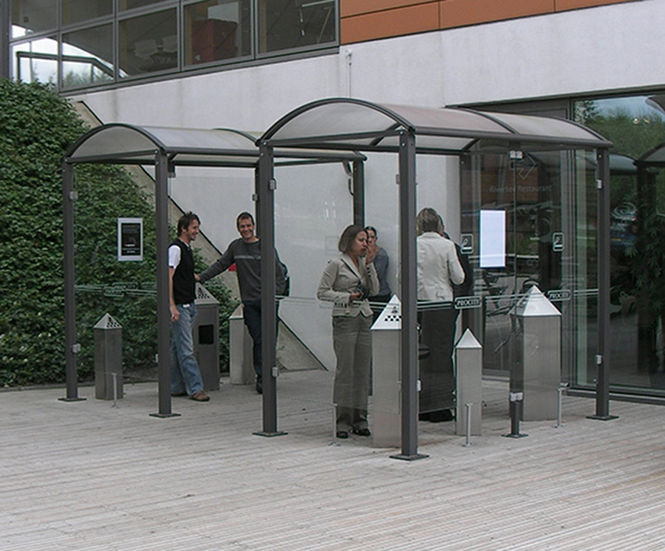

The Classic Smoking Shelter is a versatile freestanding barrel roof structure with steel beam supports and a roof frame that is clad with translucent cellular impact and fire-resistant 6mm polycarbonate with UV protection. The side and back cladding is shatter-resistant toughened safety glass with a thickness of 8mm, with safety signage etched into the glass.

With a main frame constructed from 80 mm box section galvanised steel with a powder coat finish, this is your quintessential smoking shelter and very popular ideal for organisations of all sizes - from offices to pubs and restaurants. The roof frame comprises of two aluminium crossbeams (40mm x 60mm) and two aluminium profile rainwater gutters. Curved aluminium profile bows.

The canopy is made of translucent cellular impact and fire-resistant polycarbonate, thickness 6mm, with UV protection and is inserted in the two gutters and between the bows. The side and back cladding is shatter-resistant toughened has safety glass with a thickness of 8mm, with a safety signage etched into the glass.

Fixed by cast aluminium clamping device for easy replacement of the safety glass panels in the event of vandalism, this suits many outdoor environments and is the perfect solution to prevent smoking at entrances or undesirable locations.

Various seating options available. Assembly and installation instruction supplied.

Customisable options include:
- Powder coating in a range of RAL colours
- Surface or subsurface mounting
- Guttering

Advantages of this design include:
- Barrel roof for water run-off
- Minimal design increases usable space beneath
- Does not require fixing to the building
- Low Maintenance

Ideal for:
- Smoking/vaping shelter

Our steel structures are manufactured to BS EN 1090 standards.

Materials, Finishes and Options

Stainless steel

  • Standard - Galvanised

  • Premium - Powder Coated

Plastic

  • Standard - 80% light transmissable

  • Premium - Coloured, Opaque, Smoked Grey

Fixtures

  • Surface Mount / Root Fixed

  • Bespoke Sizes

  • Cigarette bins

  • Security Additions
