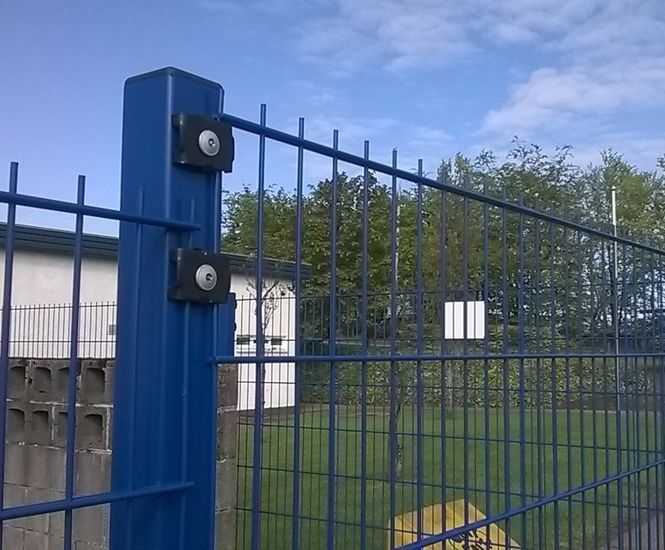

Lochrin® FlatGUARD™ is a welded mesh fencing system ideal for applications where security is required but without an obstructive and intimidating barrier.

Standard panels are made using a 6.0mm vertical wire and twin 8.0mm horizontal wires with 200mm x 50mm aperture, in widths to suit post centres of approx. 2.5m. FlatGUARD™ Lite panels made using 5.0mm vertical wire and twin 6.0mm horizontal wires are also available.

Specially designed security brackets are fitted on the posts and anti-tamper bolts are used to fix clips, providing resistance to vandalism and attempts to force entry.

Lochrin® FlatGUARD™ provides strong, resilient fencing which blends into the environment, making it popular with architects and specifiers.

Applications

The Lochrin® FlatGUARD™ system can be used where a greater level security is required, such as:

  • Inner compounds for utility sites
  • Telecommunication compounds
  • Railway infrastructure

FlatGUARD™ Lite panels can be used where general security is required, such as:

  • Schools
  • Commercial units
  • Hospitals

Key benefits

  • Effective general security boundary protection
  • Unobtrusive fence blends into the environment
  • Specially designed security brackets for added resistance
  • Quick and simple installation
  • Available in 6 heights up to 3030mm

Technical information

Welded mesh
Constructed using 6.0mm vertical wire and twin 8.0mm horizontal wires with mesh aperture 200mm x 50mm. Also available in FlatGUARD™ Lite panels made using 5.0mm vertical wire and twin 6.0mm horizontal wires.

Posts
60mm x 60mm rolled hollow section (RHS) steel

Panel heights
1030mm, 1230mm, 1830mm, 2030mm, 2430mm, 3030mm

Post centres
Approx. 2500mm

Finish

Standard finish is polyester powder coated green 6005. Hot dip galvanized only, or alternative colours, are available on request.

Fixings

Security brackets, clips and 'Lochrin anti-tamper' bolts

Accessories

In-house fabrication facilities enable Lochrin Bain to manufacture pedestrian access and vehicle gates (single, double, sliding and automated gates), specialist posts, and other bespoke security solutions to suit fence styles and applications.

Technical support

CAD drawings, data sheets, bill pages and site specific solutions are available from the company's specification team.
