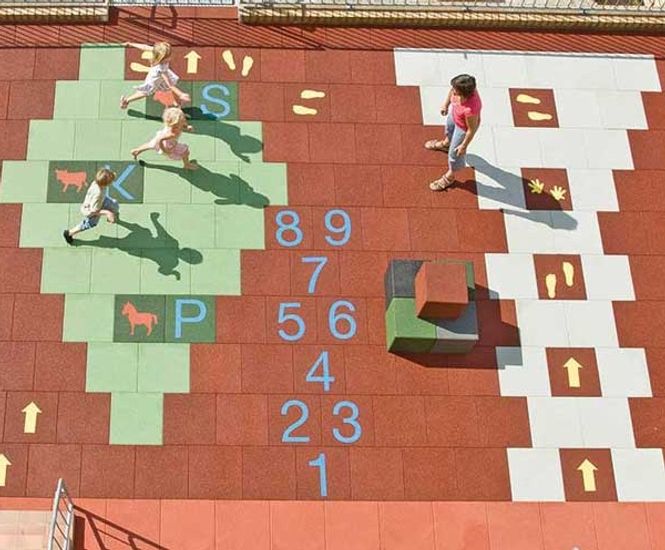

The EUROFLEX® Letter and Number Slabs are ideal for designing playgrounds in schools, kindergartens and day care facilities and provide educational enhancement for all play and sports areas, as well as amusement parks.

EUROFLEX® design slabs – alone or in combination with letter and number slabs – provide exciting design options. Areas with themes like an e.g. zoo, star or sea can be created.

In combination with standard and colourful impact protection slabs, these slabs can be used for numerous games involving hopping. While exercising their natural impulse to be active, children can heighten their coordination skills and reinforce their knowledge of the alphabet and numbers.

The slab has the same safety characteristics as the EUROFLEX® EPDM impact protection slabs. They are tested according to DIN EN 1176-1:2008 and are suitable for fall heights up to 3 metres.

Applications

  • Children playgrounds

  • Multi-generation recreation facilities

  • Schoolyards, kindergartens and day care facilities

  • Amusement parks

Key features

  • Tested according to DIN EN 1176-1:2008

  • Unharmed by weathering and extreme temperatures

  • Made from high-quality recycled rubber granulate and PU binding agents

  • Critical fall height determined by the Head Injury Criteria (HIC) method

  • Highly resilient, unharmed by weathering

  • Suitable for under outdoor playground equipment for fall heights up to 3.0m

  • Adjacent tiles interconnected with pre-inserted pins ensure the safe and secure surface

  • Large drainage capacity provided by dimple texturing on lower surface

  • Cost-effective to install with great freedom for design

Technical data

Material
Base slab: recycled rubber granulate with PU binding agent
Letters/Numbers: mixing ratio approx. 80% EPDM, approx. 20% black

Colours
Impact protection slab: red, green, black, grey
Letters / Numbers: red, grey, blue

Dimensions
Available in a range of seven thicknesses (30 to 90mm) suitable for fall heights from 1 to 3 metres. Softsystems consist of a 60mm or 70mm impact protection slab with a 20mm base layer.

1.00m max. fall height: 30mm x 500mm x 500mm, 5.2kg/unit
1.20m max. fall height: 40mm x 500mm x 500mm, 6.5kg/unit
1.50m max. fall height: 50mm x 500mm x 500mm, 7.5kg/unit
1.70m max. fall height: 60mm x 500mm x 500mm, 9.0kg/unit
2.10m max. fall height: 70mm x 500mm x 500mm, 10.4kg/unit
2.30m max. fall height: 80mm x 500mm x 500mm, 12.0kg/unit

2.60m max. fall height: 80mm (Softsystem) x 500mm x 500mm, 9.5kg/unit
3.00m max. fall height: 90mm (Softsystem) x 500mm x 500mm, 11.0kg/unit

Tolerances: length and width ± 0,8%, thickness ± 2 mm.
