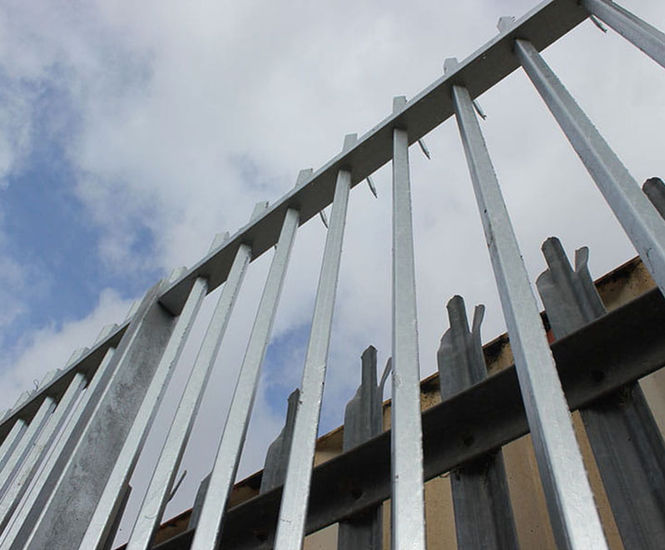

Barbican Barbed-Top fencing with barbs welded to the top of each pale acts as a highly effective deterrent and barrier to intruders. The welded pale -through-rail construction and concealed, sleeved panel to post fixings provides strength and security to the fencing. It is suited to applications where a fence with a recognised security rating and
Barbican Barbed-Top fencing with barbs welded to the top of each pale acts as a highly effective deterrent and barrier to intruders.
The welded pale -through-rail construction and concealed, sleeved panel to post fixings provides strength and security to the fencing.
It is suited to applications where a fence with a recognised security rating and a high visual deterrent is specified.
Key Features
LPS 1175 approved
Secured by Design Preferred Specification
Anti-climb design
Fully welded pale-through-rail construction
SR1 gates available
Finishes
Hot dip galvanised to BS EN 1461 as standard
Hot dip galvanised and powder coated to BS EN 13438 in one of our standard colours BS or RAL colours at extra cost
Powder coating to any other BS or RAL colours to special order
Marine coat - for installations near salt water at extra cost
Barbican® Barbed Top A1 Panel Specification
Height (mm)
Post Centres (mm)
Post Dimensions (mm)
Overall Post Length (mm)
1800
3000
60 x 60
2500
2000
3000
60 x 60
2800
2500
3000
80 x 60
3300
3000
2484
80 x 60
3800
Please note: advised use on general sites at 2.25mH and above. For lower heights on special sites please ensure it matches local planning requirements.
