Frame Timber / wood
Roof / sides Polycarbonate
Timber / wood
Features Integral seating
Fixing Root fixed
Dimensions (w x d x h) see drawing

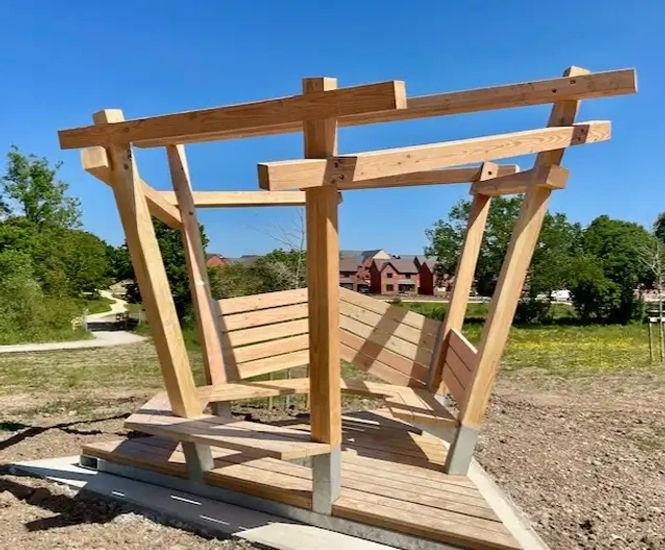

Frame is 150x150mm section Douglas Fir slotted into steel box section lower legs on steel base frame.

Seats of the same timber, 40 (t) x 450mm (d), can have steel edge detail to prevent it being cut through. Seating layout can be altered as required.

Tough acrylic roof panels can be almost any colour, or a 'rainbow' of colours.

Installation

Groundworks by others - would require sub-base 100mm or so down from FGL, with three smallish concrete pads, then Handspring installs the structure, and final surfacing run though.


Frame is 150x150mm section Douglas Fir slotted into steel box section lower legs on steel base frame.

Seats of the same timber, 40 (t) x 450mm (d), can have steel edge detail to prevent it being cut through. Seating layout can be altered as required.

Tough acrylic roof panels can be almost any colour, or a 'rainbow' of colours.

Installation

Groundworks by others - would require sub-base 100mm or so down from FGL, with three smallish concrete pads, then Handspring installs the structure, and final surfacing run though.
