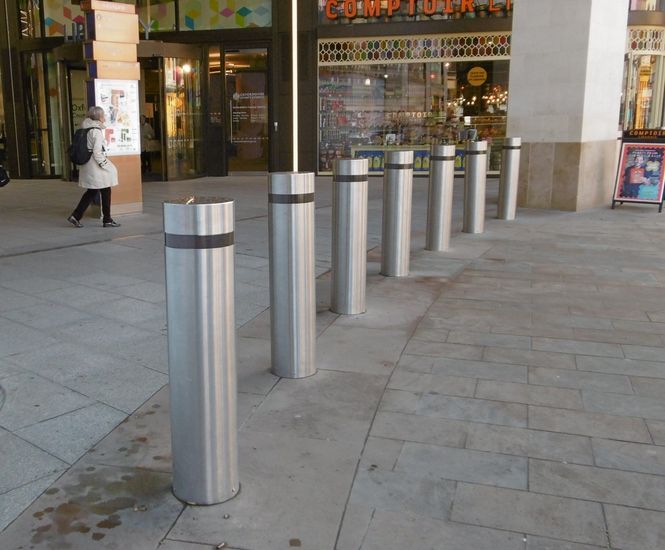

PAS 68 shallow depth static Terra Venus hostile vehicle mitigation (HVM) bollards are made from S355 structural steel, and impact-tested to stop a 7.5t vehicle at 30mph. Designed for shallow embedment, these static bollards suit public realm protection where minimal foundation depth is required.

  • Hostile vehicle mitigation bollard for high-security perimeter protection

  • Impact tested to PAS 68 standard for 7.5t at 30mph (667kJ)

  • Shallow embedment depth of 300mm for sites with limited foundation depth

  • Height above ground 1000mm, 219mm diameter

  • Polyester powder coated as standard, with stainless steel and decorative sleeve options

  • Secured by Design and BRE Global accredited

  • Complies with BSi PAS 69 installation guidelines

Applications

  • Public realm areas

  • Main entrances to buildings

  • Crowded places and venues

  • Shopping centres

  • City centre markets

  • Perimeter security for sensitive sites

Dimensions

Height above ground: 1000mm

Diameter: 219mm

Embedment depth: 300mm

Performance

PAS 68 classification: V/7500[N2]/48/90:3.3/0.0

Impact energy 667kJ (7.5t at 30mph)

Materials

Made from S355 structural steel

Finish

Shotblasted, hot zinc sprayed, primed, polyurethane paint

Optional 316 stainless steel satin or bead blasted sleeves

Options and variations

Decorative sleeves with dome or mitre tops

Installation

Shallow foundation type B, 300mm embedment

Install at 1200mm between upright faces to meet PAS 69

Accreditations

PAS 68 tested

Secured by Design

BRE Global
