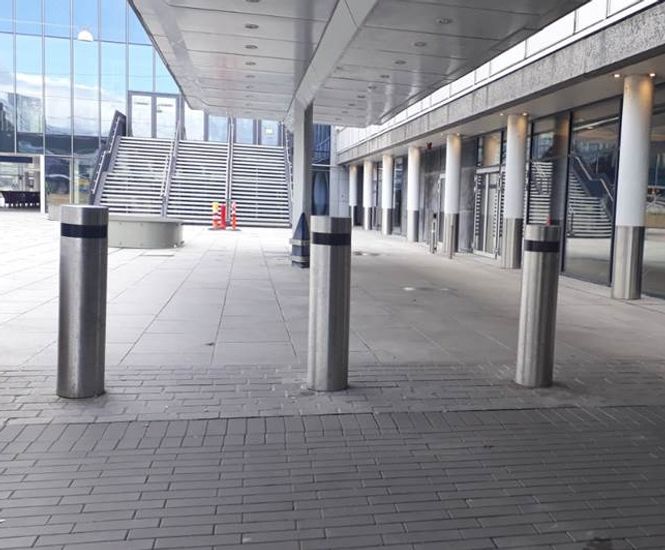

Terra Mars static hostile vehicle mitigation (HVM) bollards are designed to stop a 7.5 tonne vehicle travelling at 40mph, tested to PAS 68 and IWA 14 standards. Made from S355 structural steel, these static bollards are suitable for high-security applications and can be finished in powder coating or stainless steel with a range of sleeve and banding options.

  • High-security static bollard range for hostile vehicle mitigation

  • Impact tested to PAS 68 and IWA 14, stopping 7.5t at 40mph (1185kJ)

  • Shallow embedment depth of 500mm for easier installation

  • Choice of finishes including powder coated or stainless steel sleeves

  • Range of decorative sleeve designs and reflective banding options

  • Height above ground 1000mm, 219mm diameter

  • Secured by Design and BRE Global accredited

Applications

  • Perimeter security for government buildings

  • Critical infrastructure protection

  • Commercial and public spaces

  • Transport hubs and airports

  • Urban landscape integration

Dimensions

Height above ground: 1000mm

Diameter: 219mm

Shallow embedment depth: 500mm

Performance

PAS 68 classification V/7500[N2]/64/90:4.0/16.7

Impact tested to 7.5t at 40mph (1185kJ)

Also tested with N3 vehicle

Materials

Made from S355 structural steel

Finish

Shotblasted, hot zinc sprayed, primed, polyurethane paint

Optional 316 stainless steel satin or bead blasted sleeves

Powder coated paint in RAL colours

Options and variations

Mitre or dome top sleeves, plain or banded designs

Reflective banding in various colours and positions

Installation

Shallow foundation type C, 500mm embedment

1200mm spacing between upright faces to meet PAS 69

Accreditations

PAS 68, IWA 14, Secured by Design, BRE Global
