System type Mesh fencing
Material Galvanised steel
Panel height 3m
Post section 70 x 70mm
Mesh aperture (h x w) 12.7 x 76.2
Mesh wire diameter 4mm
Notable features PAS 68 crash rated
Footing options Concrete blocks
Accessories Pedestrian access gates
Availability For hire
For sale




The RDS PAS 68 mesh perimeter fencing system uses an RDS block combined with a post arrangement which allows the fence panels to be quickly erected and removed.

Testing

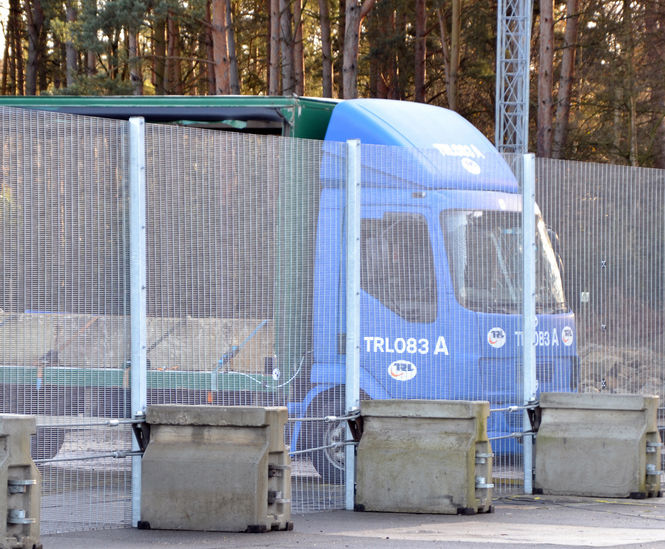

RDS fencing has been crash tested and rated to BSI PAS68:2010 standards. This temporary fencing system has been crash tested to stop 2.5 tonne and 7.5 tonne vehicles meeting ratings of V2500(N1G)/48/90:4.7/0.0 and V7500(N2)/48/90:11.6/0.0.

Mob and crowd load tested for use in areas of mass population.

The RDS PAS68 fence system offers a combination of high security temporary fencing with a hostile vehicle mitigation PAS 68 enhancement, all within the same fence line. This gives it attributes normally only seen on permanent installations. The ease in which this system is deployed ensures that minimal on-site disruption normally associated with the install and removal of a fence line.

The modular system is available in heights up to 3m has been designed to incorporate vehicle and pedestrian access.

Features and benefits

  • Rapidly deployable
  • Up to heights of 3m
  • Allows for changes in direction and ground conditions
  • Suitable for hard or soft ground standings
  • No ground pinning or foundations required
  • More secure than standard hoarding
  • Visually appealing - does not impact the local environment
  • High visibility making it suitable for use with CCTV camera systems
  • Provides protection against external threats to any temporary site
  • Ideal in locations where space is an issue or fencing is difficult to deploy
  • Supplied with HiSec 358 as standard

Options

  • Can be supplied with a choice of mesh
  • Can be fully integrated with PIDs, CCTV and topping enhancements
  • Pedestrian access portals can be supplied with PAS 68 rating
  • Available for rental or purchase
  • A non-PAS 68 (RDS) and a lightweight low security (RDS Lite) solution is also available


The RDS PAS 68 mesh perimeter fencing system uses an RDS block combined with a post arrangement which allows the fence panels to be quickly erected and removed.

Testing

RDS fencing has been crash tested and rated to BSI PAS68:2010 standards. This temporary fencing system has been crash tested to stop 2.5 tonne and 7.5 tonne vehicles meeting ratings of V2500(N1G)/48/90:4.7/0.0 and V7500(N2)/48/90:11.6/0.0.

Mob and crowd load tested for use in areas of mass population.

The RDS PAS68 fence system offers a combination of high security temporary fencing with a hostile vehicle mitigation PAS 68 enhancement, all within the same fence line. This gives it attributes normally only seen on permanent installations. The ease in which this system is deployed ensures that minimal on-site disruption normally associated with the install and removal of a fence line.

The modular system is available in heights up to 3m has been designed to incorporate vehicle and pedestrian access.

Features and benefits

  • Rapidly deployable
  • Up to heights of 3m
  • Allows for changes in direction and ground conditions
  • Suitable for hard or soft ground standings
  • No ground pinning or foundations required
  • More secure than standard hoarding
  • Visually appealing - does not impact the local environment
  • High visibility making it suitable for use with CCTV camera systems
  • Provides protection against external threats to any temporary site
  • Ideal in locations where space is an issue or fencing is difficult to deploy
  • Supplied with HiSec 358 as standard

Options

  • Can be supplied with a choice of mesh
  • Can be fully integrated with PIDs, CCTV and topping enhancements
  • Pedestrian access portals can be supplied with PAS 68 rating
  • Available for rental or purchase
  • A non-PAS 68 (RDS) and a lightweight low security (RDS Lite) solution is also available
