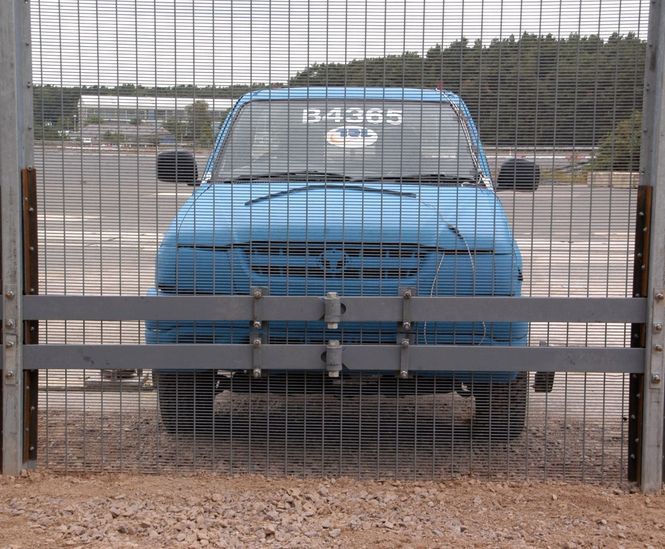

HiSec Super PAS 68 is a high-security fencing system from Zaun, made to integrate hostile vehicle mitigation to BSI PAS 68:2010 standards. Designed to stop a 2.5-tonne vehicle at 48 km/h, it uses a GME spring HVM system with HiSec Super 6 mesh and is installed with concrete footings for a single line of defence. Suitable for critical infrastructure and sites needing certified vehicle impact resistance.

  • High-security fencing system with integrated hostile vehicle mitigation

  • Crash tested and rated to PAS 68:2010 V/2500(N1G)/48/90:0/0.0

  • Stops a 2.5-tonne vehicle travelling at 48 km/h with zero penetration

  • Made from HiSec Super 6 mesh with 4mm horizontal and 6mm vertical wires

  • Installed with concrete footings

  • Compatible with fence toppings, pedestrian and vehicle gates

  • Protective zinc layer and polyester powder coating for durability

  • Life expectancy of 15–20 years in UK C1 environments with regular maintenance

Applications

  • Critical infrastructure

  • Utilities and energy sites

  • Transport hubs

  • Government and military facilities

  • Data centres

  • Airports

  • High-risk commercial premises

Dimensions

  • Height range: 2000 - 3600mm

  • Panel width: 2520mm

  • Vertical wire gauge 6mm

  • Horizontal wire gauge 4mm

  • Wire spacing 76.2mm

  • Footing depth 400mm

Performance

  • PAS 68:2010 V/2500(N1G)/48/90:0/0.0 crash rating

  • Stops 2.5-tonne vehicle at 48 km/h with zero penetration

  • Life expectancy 15–20 years in UK C1 environment

Materials

Steel mesh with GME spring HVM system

Colours

Range of colours available

Finish

Protective zinc layer and polyester powder coating to BS1722 p16

Options and variations

  • Posts in different lengths for various panel heights and ground conditions

  • Cranked, V shape, or Top Hat extensions for barbed or razor wire

  • Extended posts for CCTV, electric fencing, lighting, or security devices

Installation

  • Installed with concrete footings

  • Post and clamp bar configuration with through bolts, washers, and nuts

  • Panels can be stepped or sloped to suit ground conditions

Accreditations

BSI PAS 68:2010 certified

Maintenance

  • Regular washing extends lifespan

  • Coating damage should be repaired promptly

  • Enhanced painting systems available for harsher environments
