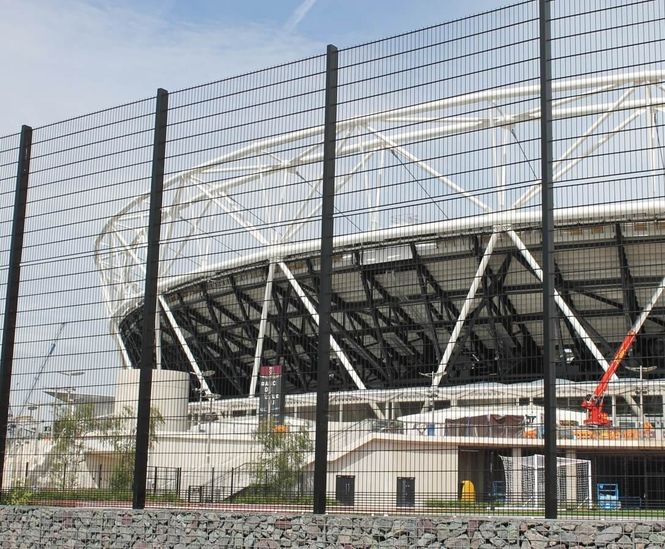

Duo-8 A1 rated fencing system (SR1 rated under issue 7) is a double wire welded mesh fencing system for applications where Secured By Design accreditation is required.

Manufactured with dual 8mm horizontal wires sandwiching single 6mm vertical wires producing a 50 x 200mm mesh pattern that is strong and vandal-resistant.

Panels available in 2.0m and 2.4m heights, and up to 3m wide.

Installed with Zaun’s tamper-resistant stainless steel fasteners, the result is a rigid perimeter fence that offers a high degree of vandal resistance and an extremely high level of through visibility, ideal for CCTV cameras.

This system offers the same product benefits as the standard Duo8, but with added security and tamper-resistant clamp bars and fixings.

Manufacturing is subject to stringent quality control, meaning all fences are of a uniformly high quality.

Accreditation

  • LPCB LPS1175 SR1 rated

  • Secured by Design approved

  • Security rated at SR1 by BRE as featured in the Red Book

Features and benefits

  • Strong and robust

  • Uses twin 8mm horizontal wires

  • High level of vandal resistance

  • High visibility open mesh pattern

  • Monitor site without restriction

Options

  • Bolt down or in ground installation

  • Cranked topping

  • Security toppings

  • RAL polyester powder coating

  • Flush top panel

Specification

Height
2030, 2430, 3030mm

Panel Width
2510mm / Optional 3010mm
Not available for 3030mm high fencing

Mesh Size
200mm x 50mm

Wire Diameter
6mm Verticals / 2 x 8mm Horizontals

Top Edge Projection
22mm Projection as Standard
Optional Flush

Post Size
60 x 60

Clamp Bar Size
40 x 5mm

Post Centres
2525mm / 3025mm

Fixing Centres
400mm

Fixings
Anti Tamper Security Fixings
