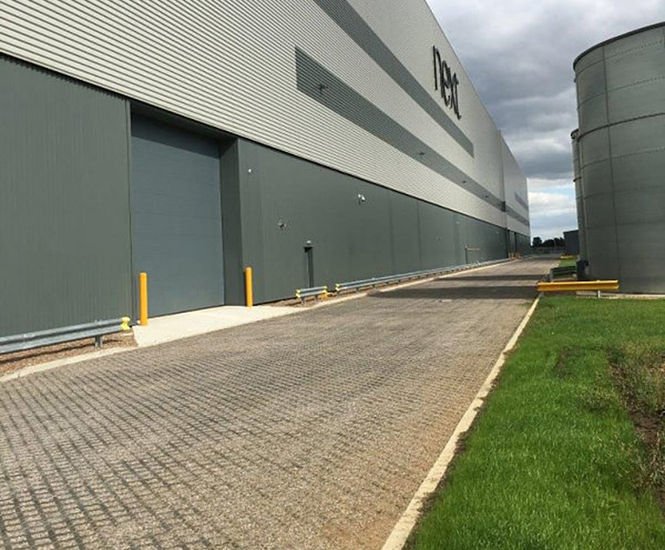

CellPave HD™ from Groundtrax Systems is a heavy-duty, truck-grade plastic permeable paving system designed for areas used by large and heavy vehicles. Suitable for access roads, parking areas and service yards, it supports either grass or gravel infill as an economical alternative to concrete or Grasscrete surfaces.

  • Heavy duty plastic grid system for high-traffic vehicle areas

  • Supports both grass and gravel infill for flexible surface finishes

  • Designed for truck-grade loads and frequent use by heavy vehicles

  • Permeable structure aids surface water drainage

  • Lightweight and easy to handle compared to concrete alternatives

  • Reduces surface erosion and ground compaction

Applications

  • Access roads for heavy vehicles

  • Parking areas for trucks and large vehicles

  • Service yards

  • Emergency access routes

  • Temporary or permanent event surfaces

Specifications

  • Dimensions: 600 x 400mm

  • Thickness: 75mm (from top of grip surface)

  • Wall thickness: 35mm

  • Quantity per m²: 4.17

  • Internal cell dimensions: 104 x 104mm

  • Nominal weight: 8kg per paver (33.36kg/m²) – within HSE manual handling limits

  • Pallet dimensions: 1600 x 1200 x 900mm (inc. pallet)

  • Pallet quantity: 120 (28.8m²)

  • Pallet weight: 850kg
