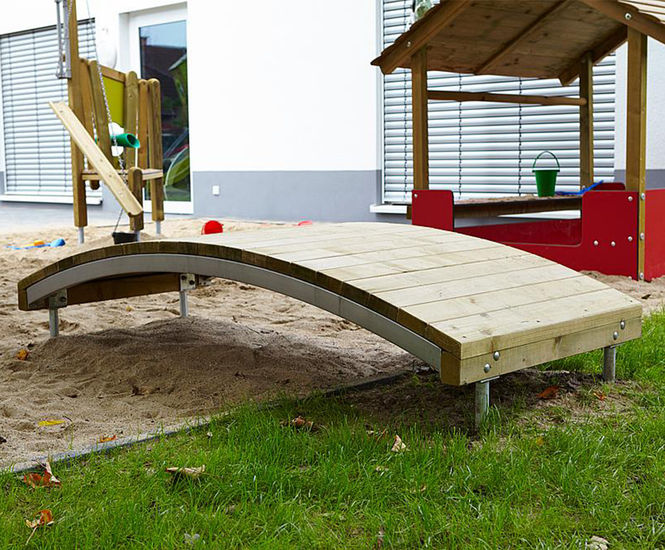

Crawling bridge by eibe is a playground structure made from pressure-impregnated softwood with a steel tube frame, designed for children to access sandboxes or play areas via an arched walkway. Suitable for ages from 1 year, it incorporates galvanised steel elevations and post bases, and meets TÜV product certification standards.

  • Direct access to sandboxes or play zones via arched bridge

  • Made from pressure-impregnated softwood with steel tube frame

  • Galvanised steel elevations and post bases for stability

  • Freefall height of 41 cm for safety

  • Certified to TÜV product standards

  • Suitable for children from 1 year

Applications

  • Playgrounds

  • Nurseries

  • Public parks

  • Outdoor recreational areas

Technical data

Material

softwood pressure-impregnated

Minimal space

5,11x3,90x2,21 m

Fall protection netto

-

Freefall height

41 cm

Biggest part

0,6x0,8x90 cm

Foundation level

ET 400

Foundation

4x CF or 2x PFs

Soil quality

at least stone

Catalogue index

minimondo Crawling bridge

Physical attributes

Minimum space required is 5.11 x 3.90 x 2.21 m. Largest part measures 0.6 x 0.8 x 90 cm. Freefall height is 41 cm.

Materials

Made from pressure-impregnated softwood with galvanised steel elevations and post bases. Platform supports use stainless steel and rectangular steel tubes.

Installation

Requires two people for assembly, estimated time is one hour. Needs ground conditions of at least stone and foundations of either 4x CF or 2x PFs.

Sustainability

Product CO2 emissions are 346.9 kg. Contains 49% renewable raw materials and 48% recycled material. Circular Product certification by Gesellschaft für Klimaschutz München GmbH (GKM GmbH).

Accreditations

Certified by TÜV product service.
