Suction / Pressure Hand Pump Solo - cast iron hand water pump for wells
Suction/pressure pump solo is a manually operated cast iron pump designed to move water from tanks or wells, suitable for non-potable water applications and not certified for drinking water use. Features a 75 mm cylinder diameter, 1 1/4" suction tube, and 1.4 bar maximum pressure: manual water pump for extracting water from containers or wells
Suction/pressure pump solo is a manually operated cast iron pump designed to move water from tanks or wells, suitable for non-potable water applications and not certified for drinking water use. Features a 75 mm cylinder diameter, 1 1/4" suction tube, and 1.4 bar maximum pressure.
Manual water pump for extracting water from containers or wells
Made from cast iron with enamelled interior for durability
Maximum conveyor height of 25 m and suction height of 7 m
¾" internal thread connection for pressure line
Not suitable for drinking water; no DVGW approval
Compact design with a total height of 77 cm
Applications

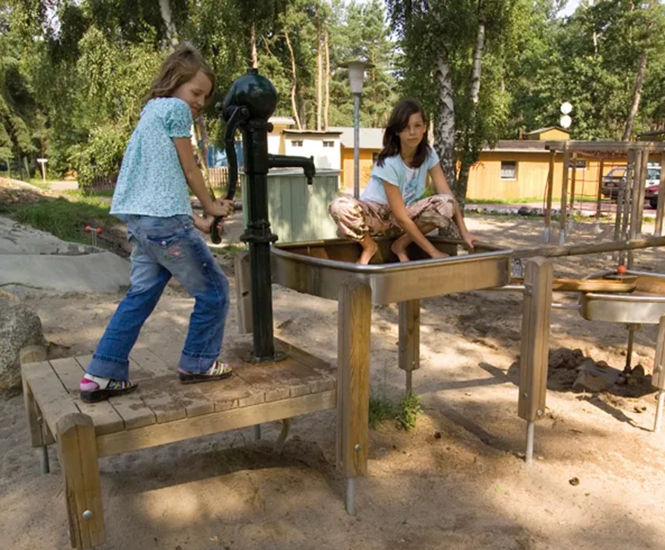

Outdoor water supply for gardens or parks
Water extraction from wells or storage tanks
Non-potable water systems in public or private spaces
Manual water access points in recreational or educational settings
Dimensions
Height 77 cm
Inner diameter cylinder 75 mm
Performance
Maximum pump pressure 1.4 bar
Maximum conveyor height 25 m
Suction height 7 m
Materials
Cast iron, enamelled interior
Colours
Green
Installation
Pump foot not included; requires suitable base or mounting
