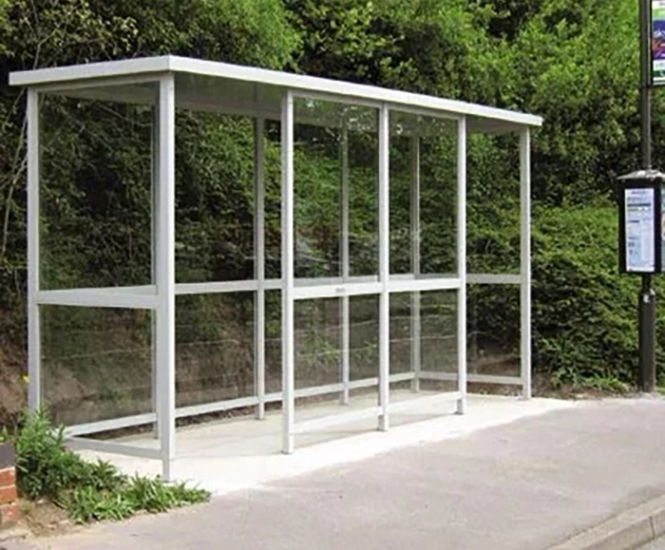

The Carleton passenger waiting shelter from Glasdon is available in a variety of sizes and colours and is suitable for bus stops and train stations.

Manufactured from low-maintenance materials, the shelters have aluminium framework that is either anodised for a silver finish or treated with a coloured Armortec® coating for a high degree of corrosion resistance and to eliminate routine painting requirements.

Features

  • 9 standard layouts

  • Flat roof models available as self-assembly shelters

  • Panels available in toughened glass, thermoplastic glazing or blank GRP in a choice of colours

  • Fully assembled form normally delivered within 4-6 weeks of order

Materials

Framework: anodised aluminium

Flat roof: pre-finished steel skins with 32mm high-density foam core

Glazed panels: 6mm toughened glass or 6mm clear high-impact thermoplastic sheet

Blank panels: 6mm textured GRP sheet

Timetable board: aluminium with Armortec coating

Colours

Framework: natural anodised aluminium

Flat roof: Alaska Grey - RAL 7000 (nearest equivalent: BS 4800 18.B.21)

Blank panels:

  • Green - BS 4800 (14.C.39)

  • Light grey - BS 4800 (00.A.05)

  • Red - BS 4800 (04.E.53)

Seat: light grey or green

Timetable board: black

Installation

Supplied pre-assembled or for self-assembly in a range of styles and finishes.

Carleton shelters up to 3 bays long and 1 bay wide can be supplied in kit form for quick assembly on site. Comprehensive instructions and a DVD are provided. Fully-assembled shelters are base-fixed using adjustable spigot legs to accommodate uneven surfaces, or can be supplied with extended legs for setting into concrete pockets.

Options

GRP perch seating (grey or green)

Personalised glass etching

Vandal-resistant timetable boards

Exterior-quality fluorescent lighting

Range

Model 220 (2 bay x 1 bay) - cantilever style

Model 225 (2 bay x 1 bay) - open-front entry

Model 230 (2 bay x 1 bay) - front left and right side entry

Model 235 (2 bay x 1 bay) - right left and left side entry

Model 240 (2 bay x 1 bay) - front left entry

Model 245 (2 bay x 1 bay) - front right entry

Model 350 (3 bay x 1 bay) - cantilever style

Model 355 (3 bay x 1 bay) - double front entry

Model 360 (3 bay x 1 bay) - staggered entry
