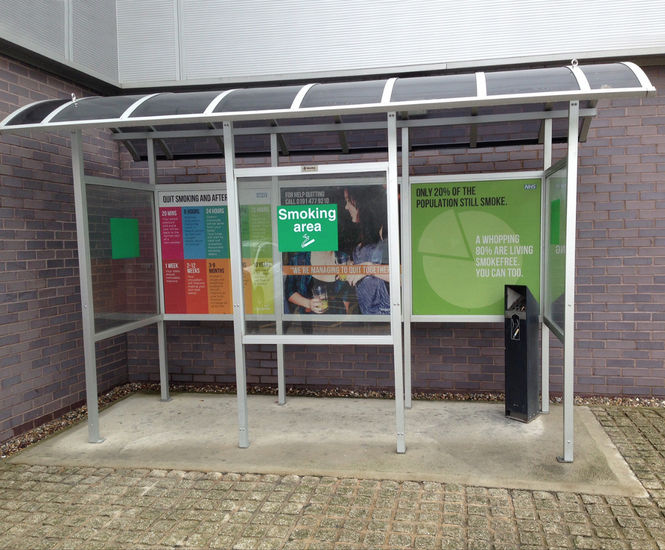

The Carleton 50 smoking shelter is a low maintenance and cost–effective standing smokers' shelter. Offering full compliance with UK smoke–free legislation, Carleton multi-purpose shelters are available in three roof styles: flat, domed or pitched. Delivered fully assembled.

Key features

  • Excellent weather protection provided by perimeter roof canopy.

  • Choice of flat or curved roof styles.

  • Colour choice offers harmonisation with surroundings and corporate themes.

  • Low-maintenance materials for a cost-effective solution.

  • Optional lighting for improved visibility during dark winter months.

  • Cigarette bins for effective control of litter and perch seating are also available.

  • Delivered in assembled form or as a self-assembly kit for sites with restricted access.

Colours

  • Framework: Natural anodised aluminium.

  • Flat Roof: Alaska Grey - RAL 7000 (Nearest equivalent: BS 4800 18.B.21)

  • Curved roof: Grey tinted.

  • Blank panels:

  • Green - BS 4800 (14.C.39)

  • Light Grey - BS 4800 (00.A.05)

  • Red - BS 4800 (04.E.53)

  • (Any other BS 4800 colour can be chosen at additional cost.)

Materials

  • Framework: Anodised aluminium.

  • Flat roof: Pre-finished steel skins with 32mm high-density foam core.

  • Glazed panels: 6mm toughened glass or 6mm clear high-impact thermoplastic glaze.

  • Blank panels: 6mm textured GRP sheet.

  • Curved Roof: 3mm high-impact thermoplastic sheet.

Dimensions

(All sizes are nominal.)

2 bay long x 1 bay wide

  • Roof: 2800mm x 1735mm

  • Walls: 2180mm x 1115mm

2 bay long x 2 bay wide

  • Roof: 2800mm x 2800mm

  • Walls: 2180mm x 2180mm

3 bay long x 1 bay wide

  • Roof: 3865mm x 1735mm

  • Walls: 3245mm x 1115mm

3 bay long x 2 bay wide

  • Roof: 3865mm x 2800mm

  • Walls: 3245mm x 2180mm
