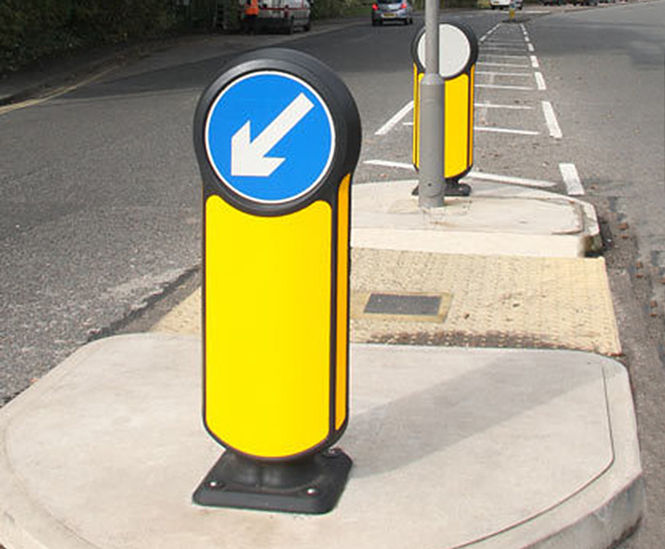

Rebound Signmaster™ from Glasdon is a passively safe, self-righting, non-illuminated bollard with a 300mm sign face for directing traffic. Available black or white with a choice of ground fixings, front sign face, front reflector and 1 pair of side reflectors. Tested to Performance Standard NE4/100, it is fully reflectorised, offering very high visibility at any time while eliminating electricity costs.

Features

  • All-round visibility, making it ideal for use at junctions

  • Made from double-skinned, passively safe Impactapol® material

  • Drive-through performance proven to Performance Standard NE4/100 in testing by TRL

  • Large 300mm sign face helps increase safety

  • Retroreflective materials are highly visible by day and night

  • Optional side reflectors give 360° reflectivity giving excellent all-round visibility

  • Recessed reflector panels are tamper-, vandal- and weather-resistant

  • Illuminated Rebound Signmaster LED Bollard also available

  • One-piece bollard with integral fixing points prevents twisting

  • Extensive range of fixing options available

Materials

Bollard: Impactapol

Fixings: stainless steel

Retroreflective sign / patches: Avery Dennison Fluorescent Yellow and Translucent White.

Dimensions

Overall height: 1046mm

Maximum width: 398mm

Maximum depth: 200mm

Bolt-down foot: 328 x 328mm

Fixing centres: 228 x 228mm

Sign face: 300mm diameter

Front / rear patch true visibility area: 165,183mm²

Side patch area: 26,820mm² per patch

Total side patch area: 53,640mm²

Weight: 6kg

Signage options

Keep left, keep right, turn left, turn right, pass either side, and blank sign faces are also available.

Optional sign faces and reflectors can be added to the rear and side of the bollard for optimum 360° visibility.

Installation

Adjustable depth concrete-in

Fixed depth concrete-in

Bolt down
