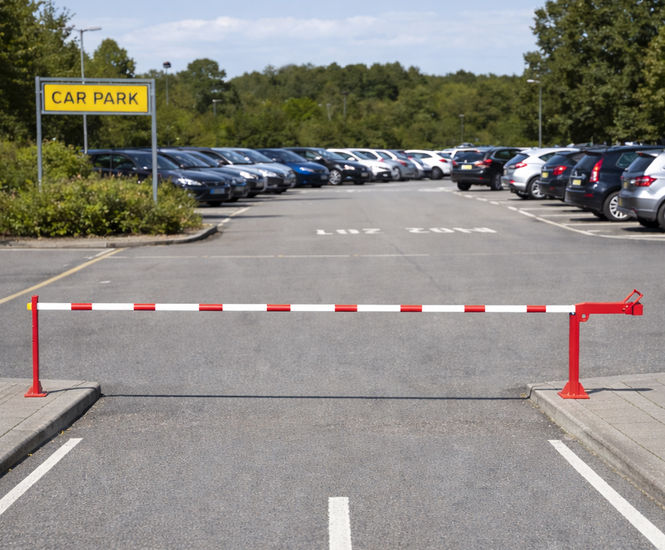

Slimline manual arm barriers are suitable for protecting car parks and other entrances to commercial property sites, and where access is restricted during certain times of the day.

Easy to use and simple to install, the barrier has been designed with the end user in mind and counterbalance at 45°, making the process of lifting and lowering easier and safer. The body of the barrier is supplied whole; this, combined with a counterbalanced boom, means that it can be operated and installed by one person.

In order to allow or prevent vehicle access, the barrier can be locked in the raised and lowered positions, giving site owners complete peace of mind when the parking area is not in use.

Manufactured from galvanised mild steel with an aluminium boom, the barrier is powder-coated red as standard. Other colours are available on request; RAL colour codes must be provided at time of order.

Features

  • Galvanised mild steel construction, painted red as standard

  • Lockable in the raised and lowered position

  • Single boom up to 7m

  • Double barriers available for larger road widths

Specifications

  • Overall height: 1208mm (approx)

  • Boom lengths: 3000-7000mm

  • Ragged barrier: 600mm below ground

  • Ragged catch post: 300mm below ground for catch post

Options

  • Aluminium skirt up to 6m

  • Available ragged for casting in or flanged for bolting down

  • Full site survey and installation service available
