Suitability Industrial property
Residential property
Transport network
Finish material Earth filled
Absorbent / reflective Sound absorbent
Product accreditation BS EN 1793-1:1998
BS EN 1794-2:2003
Support services CAD
Design
Installation
Site survey
Dimensions (w x h) Up to 12m high
Sound insulation (dB) 67
Laboratory sound reduction (dB) 67

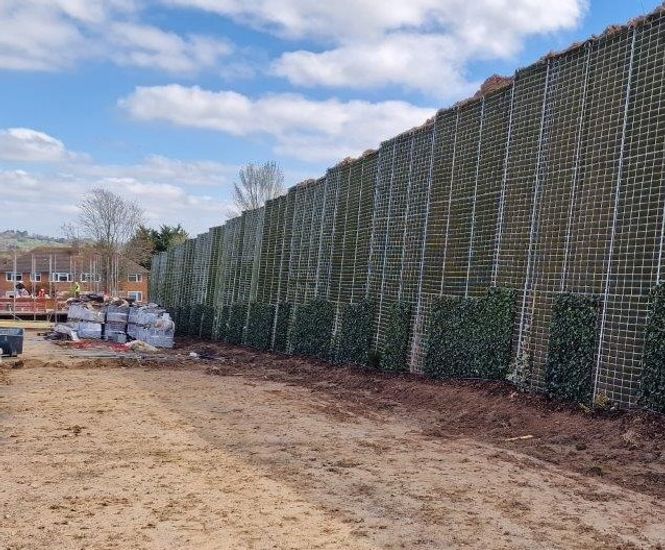

ECOSoundBlok offers effective protection against noise pollution or nuisance and contributes positively to protecting the environment. These barriers blend easily into the natural environment and become more attractive as the greenery grows. Associated plant growth also helps to reduce CO2 in the atmosphere.

With ECOSoundBlok, a screen of living green is a structure that is able to save space and grow to full size without the need for any artificial edifice, thanks to natural precipitation.

The noise barrier is composed of just three components:

  • framework trellis profiles
  • outer mats
  • vertical supports

These individual components are assembled on site without any bolts and / or welding guaranteeing a 'zero failure' system upon assembly.

The choice of covering options includes coconut fibre and green fleece fibre.

Advantages

  • No foundations required.
  • No need to remove spoil from site as it can be used in the construction of the barrier.
  • 50-75 year life-span.
  • Tested to 67dB 'Highly Absorbent' on both sides.
  • Low maintenance costs.
  • Graffiti-resistant.
  • No requirement for any supplementary provisions in terms of irrigation installations.
  • Long life durability.
  • EU patented.
  • Highly absorbent.
  • Excellent insulator.
  • Adds to the quality of the environment with greenery and CO2 reduction.
  • Responsible landscaping.
  • Green and completely recyclable.
  • No expense of providing foundations thanks to their natural stability.
  • Cost savings due to the reusing of existing barriers thereby reducing transport and removal costs as well as reducing CO2 emissions.
  • Supplementary applications include, for example, solar panels.

Gramm Barrier's team of experts supplies and installs ECOSoundBlok acoustic barriers across the UK.

Guarantee

Gramm Barrier Systems is the only noise barrier specialist in the country to give a 30-year guarantee on all acoustic fencing, acoustic barriers and noise barriers, with a 40-year guarantee on plastic systems.

Barriers are designed to be maintenance-free for the full 30 years.

All materials and installations are to such a high standard that the company is the only noise barrier specialist to have all works backed and insured by the government.


ECOSoundBlok offers effective protection against noise pollution or nuisance and contributes positively to protecting the environment. These barriers blend easily into the natural environment and become more attractive as the greenery grows. Associated plant growth also helps to reduce CO2 in the atmosphere.

With ECOSoundBlok, a screen of living green is a structure that is able to save space and grow to full size without the need for any artificial edifice, thanks to natural precipitation.

The noise barrier is composed of just three components:

  • framework trellis profiles
  • outer mats
  • vertical supports

These individual components are assembled on site without any bolts and / or welding guaranteeing a 'zero failure' system upon assembly.

The choice of covering options includes coconut fibre and green fleece fibre.

Advantages

  • No foundations required.
  • No need to remove spoil from site as it can be used in the construction of the barrier.
  • 50-75 year life-span.
  • Tested to 67dB 'Highly Absorbent' on both sides.
  • Low maintenance costs.
  • Graffiti-resistant.
  • No requirement for any supplementary provisions in terms of irrigation installations.
  • Long life durability.
  • EU patented.
  • Highly absorbent.
  • Excellent insulator.
  • Adds to the quality of the environment with greenery and CO2 reduction.
  • Responsible landscaping.
  • Green and completely recyclable.
  • No expense of providing foundations thanks to their natural stability.
  • Cost savings due to the reusing of existing barriers thereby reducing transport and removal costs as well as reducing CO2 emissions.
  • Supplementary applications include, for example, solar panels.

Gramm Barrier's team of experts supplies and installs ECOSoundBlok acoustic barriers across the UK.

Guarantee

Gramm Barrier Systems is the only noise barrier specialist in the country to give a 30-year guarantee on all acoustic fencing, acoustic barriers and noise barriers, with a 40-year guarantee on plastic systems.

Barriers are designed to be maintenance-free for the full 30 years.

All materials and installations are to such a high standard that the company is the only noise barrier specialist to have all works backed and insured by the government.
