The Stronguard™ RCS retrofit crash system offers super-strong and durable ultimate security palisade fencing. It can be supplied new or retrofitted on site.

Designed for the security of top assets which form part of the critical national infrastructure, Stronguard™ RCS provides unrivaled attack delay against saws, cutting, hammers, jacks, levers, power tools and hand tools.

The hostile vehicle mitigation perimeter is available at two levels and offers some of the highest levels of security for even the most sensitive sites.

Features

  • PAS 68 certified

  • Secured by Design

  • No visible fixings

  • ‘D’ profile

  • Fix from the rear with a high load anchor

  • Accommodates slopes up to 30° without requiring alterations on site

  • Galvanised to British Standard EN ISO 1461:2009

Specifications

Product

Height (m)

Pale type

Security rating

StronGuard RCS

1.8-3.0

D

CPNI BEH

StronGuard SL1 RCS

1.8-3.0

W

LPS 1175 A1 (SR1)

StronGuard SL2 RCS

2.4-3.0

W

LPS 1175 B3 (SR2)

Standard post centres: 2.75m

Standard foundations: 450mm sq hole (inters) and 600mm sq hole (corners/ends)

Impact classification

Product

Vehicle weight (kg)

Vehicle type

Test speed (kph)

Impact angle (°C)

Penetration (m)

Dispersion of major debris (m)

StronGuard™RCS 25:
V/2500 [N1G]/48/90: 0.0/0.0

2500

N1G

48

90

0

0

StronGuard™RCS 75:
V/7500 [N2]/48/90: 3.5/0.0

7500

N2

48

90

3.5

0

Options

  • Powder coating in a range of RAL colours

  • Barbed wire toppings

  • Razor wire toppings

  • Electrified fence

  • PIDs and PIDs systems

Applications

  • Airports

  • Military

  • Rail

  • Utility

  • Petrochemical plants

  • All sites that demand maximum security

Accreditation

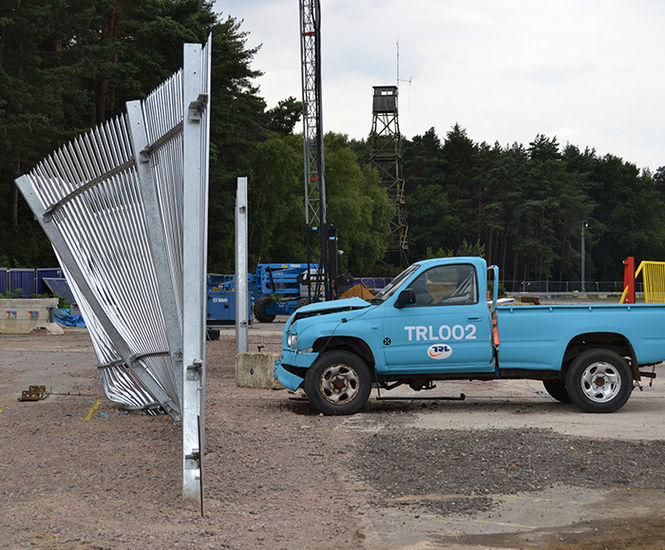

Barkers Stronguard™ RCS 25 and RCS 75 is the first palisade fence system to gain PAS 68 accreditation.

PAS 68: 2010: 2500 (N1G)/48/90 0.0
PAS 68: 2010:7500 (N2)/48/90 3.5/ 0.3

Services

Can be installed by Barkers approved installers.
