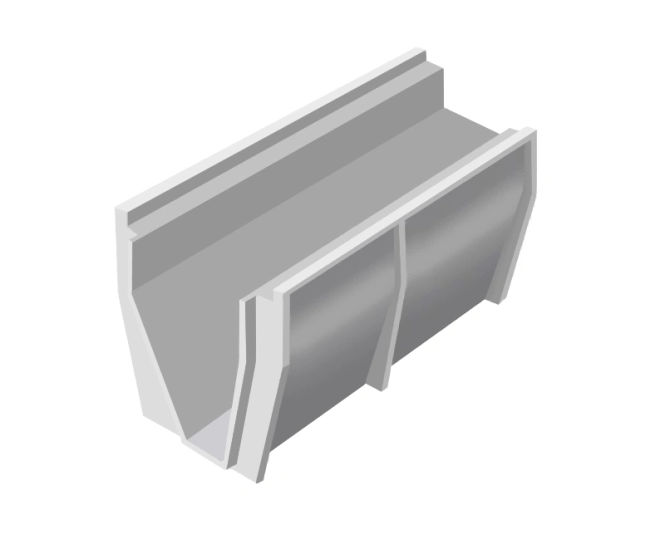

Althon CH 150 drainage channels are precast GRC channels with a trapezoidal profile and a high capacity of 51 l/m. Channel width - 152mm; max dimensions - 2000 (l) x 280 (w) x 440mm (d); choice of 9 lids for a range of loadings; suitable for large car parks and other hardstandings; suitable for problem sites, including those with a high watertable
Althon CH 150 Drainage Channel is a surface water channel with a trapezoidal shape for self-cleansing flow, designed to be laid level and drain to the nearest outlet. It has the capacity of a 250mm pipe with a flow rate of 51 l/m.
High capacity surface water drainage channel with compact dimensions
51 l/m flow rate
Trapezoidal shape creates self-cleansing velocity
Can be installed without a fall
Equivalent hydraulic capacity to a 250mm pipe
Available with PDF and CAD files for design integration
