Material Concrete
Number of segments One piece
Backwall height (mm) 1250, 1650, 2130
Max. pipe diameter (mm) 900 ID

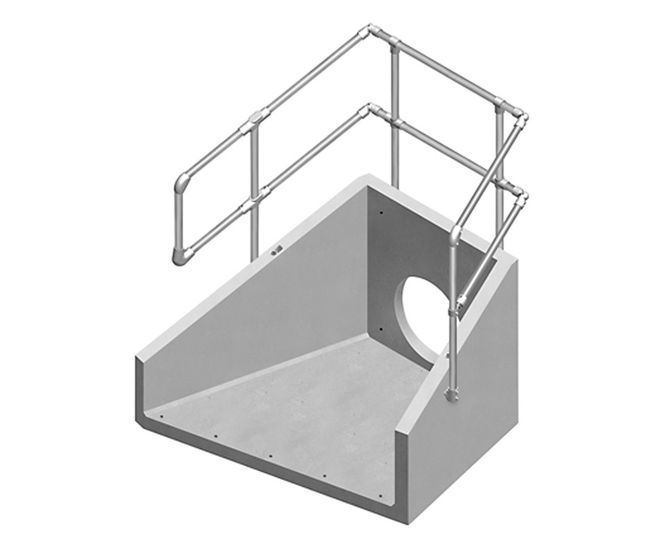

The AH10 left-hand angled headwall is a standard precast reinforced concrete headwall for pipes with internal diameters up to 900mm. They allow pipework entering a watercourse at an angle, or for an outfall to be sited on a bend in a river. Pipes can be plastic, clayware or PCC.

  • Suitable for pipes with up to 900mm ID
  • Available with 3 standard backwall heights
  • Toe available in 5 depths to accommodate site conditions
  • Stainless steel sockets for attaching gratings
  • Anchorage system brackets available
  • Lifting points for safe handling

Application

AH10 left-hand angled headwalls allow pipework entering a watercourse at an angle, or for an outfall to be sited on a bend in a river.

Material

Reinforced concrete

Dimensions

Backwall heights
1.25m, 1.65m, 2.13m

Toe depths
305mm, 610mm, 915mm, 1220mm, 1420mm


The AH10 left-hand angled headwall is a standard precast reinforced concrete headwall for pipes with internal diameters up to 900mm. They allow pipework entering a watercourse at an angle, or for an outfall to be sited on a bend in a river. Pipes can be plastic, clayware or PCC.

  • Suitable for pipes with up to 900mm ID
  • Available with 3 standard backwall heights
  • Toe available in 5 depths to accommodate site conditions
  • Stainless steel sockets for attaching gratings
  • Anchorage system brackets available
  • Lifting points for safe handling

Application

AH10 left-hand angled headwalls allow pipework entering a watercourse at an angle, or for an outfall to be sited on a bend in a river.

Material

Reinforced concrete

Dimensions

Backwall heights
1.25m, 1.65m, 2.13m

Toe depths
305mm, 610mm, 915mm, 1220mm, 1420mm





Downloads
  • AH10C Datasheet and Installation Guide
    AH10C Datasheet and Installation Guide
    773.88KB
    Download
  • Standard Precast Concrete Headwalls brochure
    Standard Precast Concrete Headwalls brochure
    3.34MB
    Download
