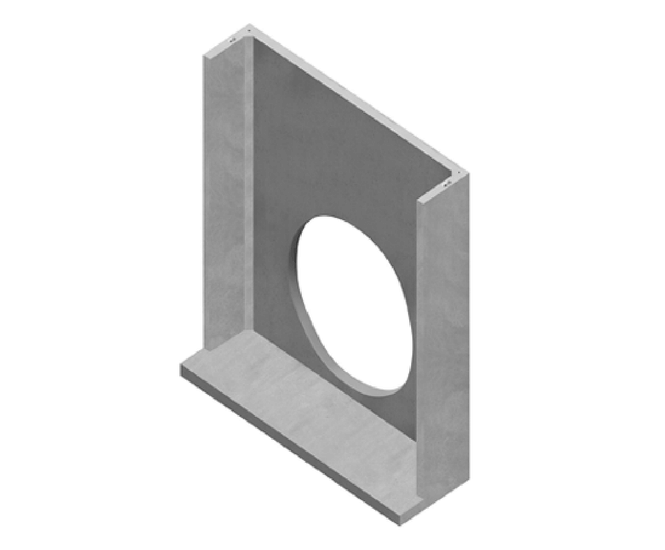

H44C is a one-piece reinforced concrete headwall range particularly suitable for steep embankments. The units are available in three widths and five standard heights. Due to the relatively narrow footprint of the unit (back to front) it is advisable to fit suitable brackets to attach ground anchors.

  • Suitable for steep inclines
  • 1120mm - 2340mm backwall heights
  • Largest unit can accommodate PCC pipes up to 1050mm and plastic pipes up to 1200mm
  • Stainless steel sockets are provided for the attachment of gratings
  • Lifting points are cast in to each wingwall for safe handling using Althon lifting clutches
  • Galvanised mild steel angle can be fitted to the side walls in order to fit stoplogs
  • Back wall can be extended horizontally through the fitting of side wall extensions if required
