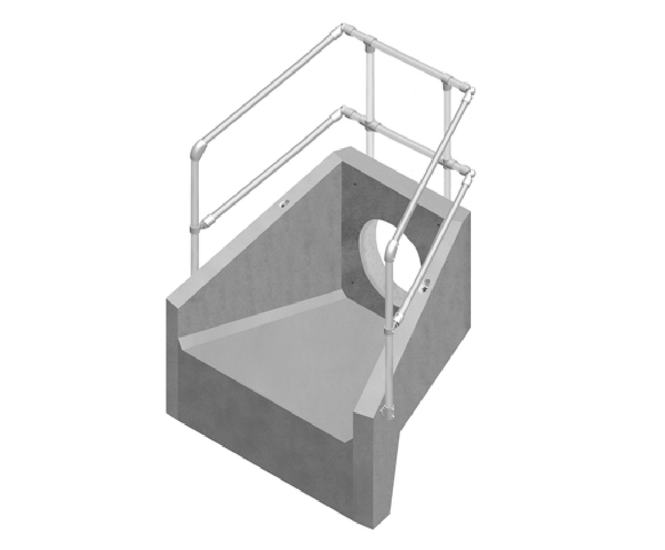

A one-piece reinforced concrete headwall to suit plastic or clayware pipes up to 525mm or PCC pipes up to 450mm.

  • Available with three standard backwall heights, 1150mm, 1600mm and 2100mm

  • Lfting points cast in to each wingwall for safe handling using Althon lifting clutches

  • Stainless steel sockets are provided for the attachment of gratings and special brackets are available for use with the anchorage system

  • Toe extension pieces are available for the H8C Headwall giving an overall toe depth of 710mm or 1015mm from the splashplate

  • Cast 150mm thick
